Lighted retractors

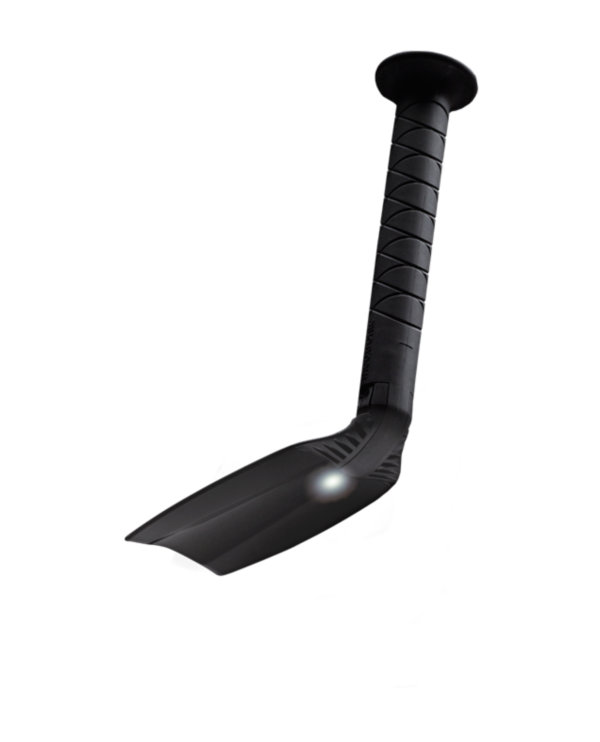

RadiaLux™ lighted retractor

<p>The RadiaLux™ lighted retractor is a single-use, cordless illumination device for a variety of soft tissue procedures.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsThe RadiaLux™ lighted retractor is a single-use retractor designed to provide surgeons with the ability to manipulate soft tissue through a combination of blades, when assembled onto a retractor handle. The retractor provides illumination to the surgical field independent of an external light source or fiber optic cables.The lighted retractor is indicated for enhancing visibility to a surgical field through the retraction of soft tissue and illumination of the surgical cavity. It is intended for but not limited to general, plastic, and reconstructive procedures in breast, and open abdominal surgery procedures.Warnings

Observe fire precautions at all times.

Do not activate the device light directed into the eyes.

Place the device in a dry and nonconductive area away from the patient when not in use.

Do not reuse, resterilize, or reprocess the RadiaLux™ lighted retractor as it is supplied sterile and intended for Single Use Only. A device that has been resterilized or reprocessed may not perform properly and may result in patient or user injury.

Avoid fluid contact with the handle and its interfaces as this may result in device failure.

Exercise caution while dissecting around the retractor. Direct contact with an electrosurgical device can cause physical damage to the retractor.

Use of the device for any purpose or in any manner other than described in this Instruction For Use may cause instrument damage or failure which could result in patient or user injury.

Precautions

The RadiaLux™ lighted retractor should only be used by qualified medical personnel possessing training in the surgical procedures being performed.

Use caution when handling the device to prevent possible damage to the blade and to prevent user injury.

Do not use sharp or abrasive instruments or materials to clean eschar buildup on the teeth grip as this may damage the blade.

Place the device on the sterilized tray when not in use.

Prior to use, carefully inspect the package before opening. Do not use the device if the package appears damaged in any way. Return damaged packages to Medtronic.

Prior to initial use, ensure that all package inserts, including warnings, cautions, and instructions for use are read and understood.

Prior to use, inspect the RadiaLux™ lighted retractor for any defects. If there is any apparent damage to blades, handle, or light, do not use the device. Return the device to Medtronic and use a new device.

Before using the device, confirm the following:

The blade is firmly attached to the retractor handle.

The light activation is working as expected.

Features

Designed and developed for breast surgery
Disposable, single-use retractor kit
Multiple blade configurations for optimal tissue pocket access
Total internal reflector lens that disperses light for ideal visualization in deep surgical pockets
No capital required
Non-conductive

Surgical applications

Nipple- and skin-sparing mastectomy
Breast reconstruction
Lumpectomy
Plastic surgery

A special lens directs light toward the back of the surgical pocket in a unique radius, improving visibility in the plane of dissection.

Assembly step 1

Grasp the retractor blade and handle.

Assembly step 2

Angle the blade onto the distal end of the handle.

Assembly step 3

Rotate the blade and insert the tabs into the slots of the handle.

Technique tips

To detach a blade, rotate the blade out of the handle while squeezing the release tabs. Do not apply pressure to the blade while squeezing the release tabs, as this will increase the force required to disengage the tabs.
Deactivate the light when not in use to preserve battery life.
You can remove any eschar buildup on the teeth with gloved fingers or gauze pads.

Specifications

Radialux™ lighted retractor comes with all blade configurations seen below.

RadiaLux™ handle

Displayed with a long, smooth paddle

The RadiaLux™ lighted retractor handle has a long, smooth paddle.

RadiaLux™ long smooth paddle

60 × 150 mm

The RadiaLux™ retractor has a 60 x 150 mm long smooth paddle.

RadiaLux™ long teeth paddle

30 × 135 mm

The RadiaLux™ retractor has a 30 x 135 mm paddle with long teeth.

RadiaLux™ long smooth paddle

60 × 150 mm

The RadiaLux™ retractor has a 60 x 90 mm paddle with short teeth.

RadiaLux™ short smooth paddle

20 × 50 mm

The RadiaLux™ retractor has a 20 x 50 mm short smooth paddle.

Ordering information

Item number	Description
50-101-1	RadiaLux™
