Diagnostic catheters

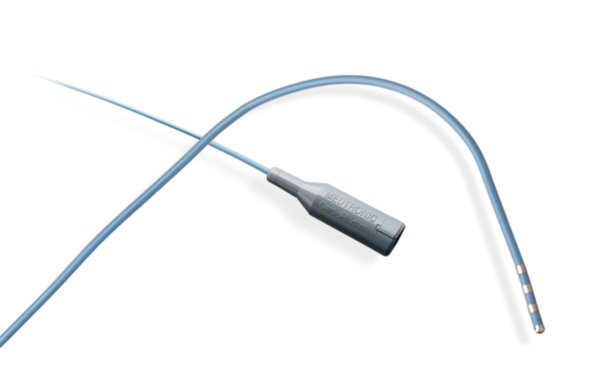

Torqr™ diagnostic catheter

<p>Torqr™ diagnostic catheters feature curved shapes for ostium access and advancement into the coronary sinus to map and pace cardiac anatomies.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsIntended use The Medtronic Torqr™ catheter is intended for use in diagnostic electrophysiologic procedures. The catheter is designed for recording intracardiac electrograms and temporary pacing associated with electrophysiology studies.Contraindications There are no known contraindications for this catheter.Warnings

This device is for single use only. Do not resterilize and/or reuse.

Catheter resterilization and reuse may result in loss of proper electrical or mechanical function and could cause patient injury.

This catheter should be used by or under the supervision of physicians thoroughly trained in electrophysiology, including the placement and use of intracardiac electrode catheters.

Electrical recording or stimulation equipment must be front end isolated or have an isolated patient cable. Current leakage from any connected electrical equipment must not exceed 10 µA for intracardiac electrodes.

Perforation of the vasculature is an inherent risk of any catheter placement. Additional potential complications are those attending any intracardiac catheterization procedure including, but not limited to cardiac tamponade, thromboembolic episodes, hematoma, pneumothorax, or local or systemic infection.

U.S. law does not permit the use of this catheter for intracardiac ablation. Do not use for DC ablation.

Precautions

To maintain optimal patient safety and catheter electrode integrity, do not wipe this catheter with organic solvents, such as alcohol.

Excessive bending or kinking of catheter may damage internal electrode wires and/or distal tip shaping capabilities.

Catheter materials are not compatible with magnetic resonance imaging (MRI).

See the device manual for detailed information regarding the procedure, indications, contraindications, warnings, precautions, and potential complications/adverse events. For further information, please call Medtronic at 1-800-328-2518 and/or consult the Medtronic website at www.medtronic.com.Caution: Federal law (United States) restricts these devices to sale by or on the order of a physician.MAJ_83945

Ordering information

Torqr™ quadrapolar fixed-curve diagnostic catheter

Item number	Shaft size (Fr)	Curve type	Electrode spacing (mm)	Number of electrodes	Usable length (cm)
04122JM	5	Josephson	2 / 5 / 2	4	110
04125JM	5	Josephson	5 / 5 / 5	4	110
04122UM	5	Cournand	2 / 5 / 2	4	110
04125UM	5	Cournand	5 / 5 / 5	4	110
04130DS	5	Damato	2 / 2 / 2	4	110
041002JM	6	Josephson	2 / 5 / 2	4	110
041005JM	6	Josephson	5 / 5 / 5	4	110
041002UM	6	Cournand	2 / 5 / 2	4	110
041005UM	6	Cournand	5 / 5 / 5	4	110
041005DM	6	Damato	5 / 5 / 5	4	110

Diagnostic catheter connecting cable — sterile

Item number	Connector type	Length (ft / cm)	Color
05504SP	4-pin	4 / 122	Yellow
05508SP	4-pin	8 / 244	Yellow

Torqr™ CS decapolar fixed-curve braided diagnostic catheter

Item number	Shaft size (Fr)	Electrode spacing (mm)	Number of electrodes	Usable length (cm)
041565CS	5	2 / 5 / 2	10	65
041865CS	5	2 / 8 / 2	10	65
041590CS	5	2 / 5 / 2	10	90

Diagnostic catheter connecting cables — sterile

Item number	Connector type	Length (ft / cm)	Color
05514SP	10-pin	4 / 122	Blue
05518SP	10-pin	8 / 244	Blue
