Nautilus™ Smart ECMO oxygenator module

<p>The Nautilus™ Smart ECMO oxygenator module combines the function of an oxygenator with integrated monitors that display real-time device performance data.</p>

Ordering information
Contact a representative

Features

Simplification. Monitoring.  Alerts in real time.

Performance predictability

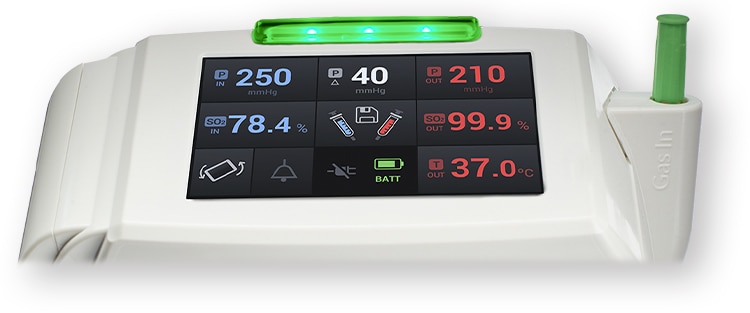

View monitored parameters on the interactive touch screen.

  • Pressure in, pressure out, ΔP
  • O2 saturation in, O2 saturation out
  • Temperature out
  • Set alarm limits
  • Receive visual and audio alert notifications
Learn more about the Nautilus™ Smart ECMO module, an oxygenator with integrated monitoring for use during extracorporeal life support (ECLS, ECMO).

Circuit simplicity

  • Integrated sensors may eliminate the need for pressure transducers and external blood saturation monitoring.2–4
  • Simplify the circuit for patient transport, ambulation, and rehabilitation.2–4
  • Fewer connections minimize the number of areas prone to blood clot formation and air entrainment.2–4

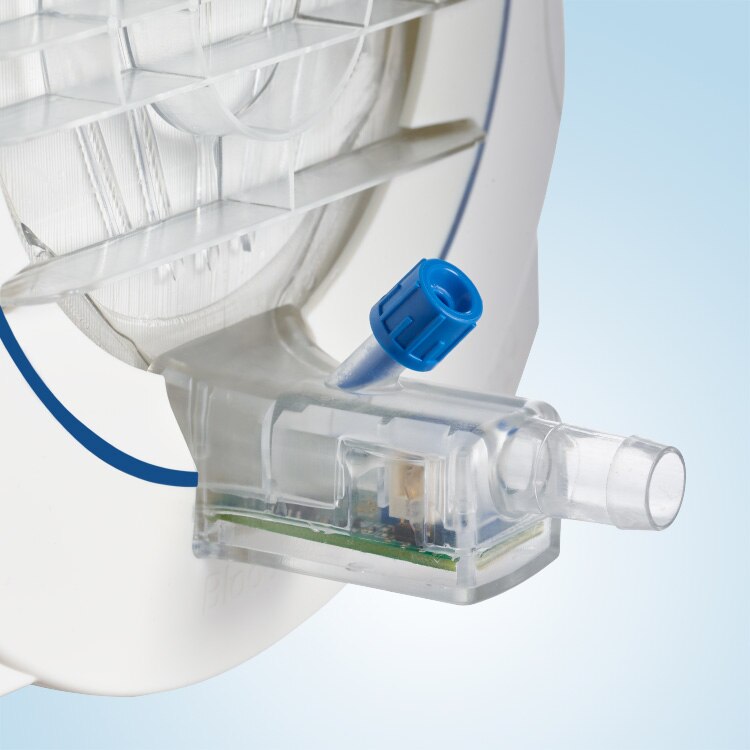

The Nautilus™ Smart ECMO module features integrated sensors in the blood inlet port that measure pressure and oxygen saturation.

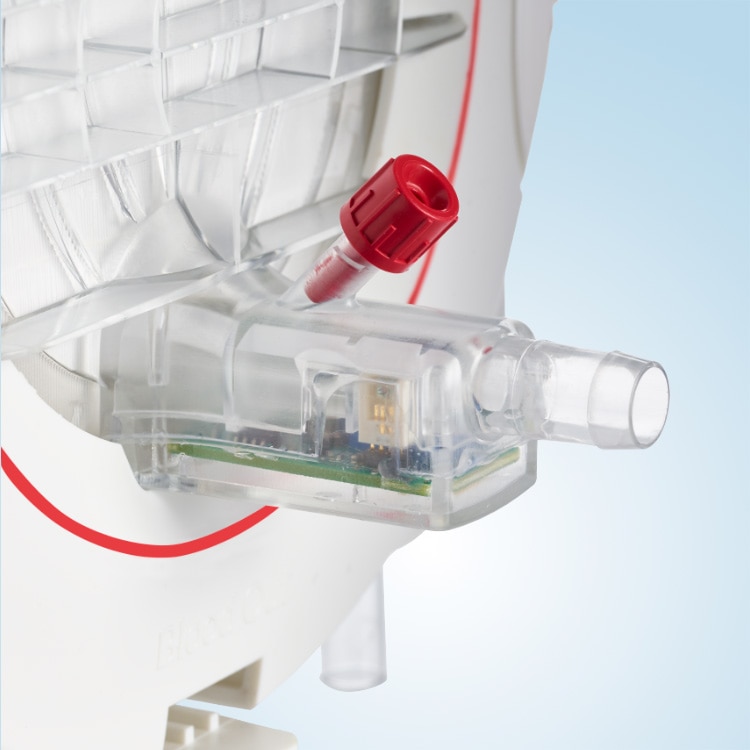

The Nautilus™ Smart ECMO module features integrated sensors in the blood outlet port that measure pressure and oxygen saturation.

Streamlined workflow

  • Light bar provides at-a-glance assessment of oxygenator performance
  • Reduces need to look at multiple devices to get oxygenator-related performance data
  • Visual and audio alerts when limits are exceeded
  • Displayed data allows clinicians to clearly communicate oxygenator status among ECMO team members

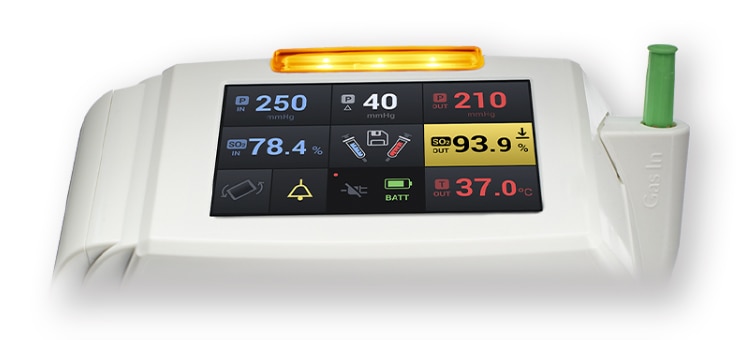

Learn more about the Nautilus™ Smart ECMO module alarm, an oxygenator with integrated monitoring for use during extracorporeal life support (ECLS, ECMO).

Designed for ECMO

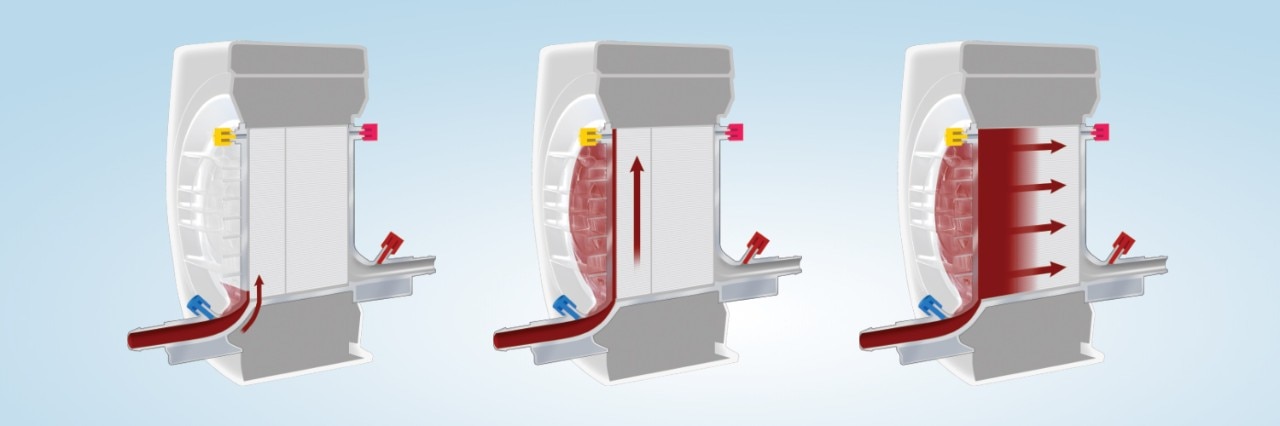

Circular flow-path technology

The Nautilus™ Smart ECMO module has a transverse flow-path with a circular profile. Transverse flow minimizes surface contact area while achieving a low blood-side pressure drop. The circular profile eliminates corners where low flow and stasis are known to occur. Designed for durability and long-term performance, the circular flow-path design improves long-term gas transfer.1

Designed for durability and long-term performance, incorporate the Nautilus™ oxygenator into your current ECMO circuit.

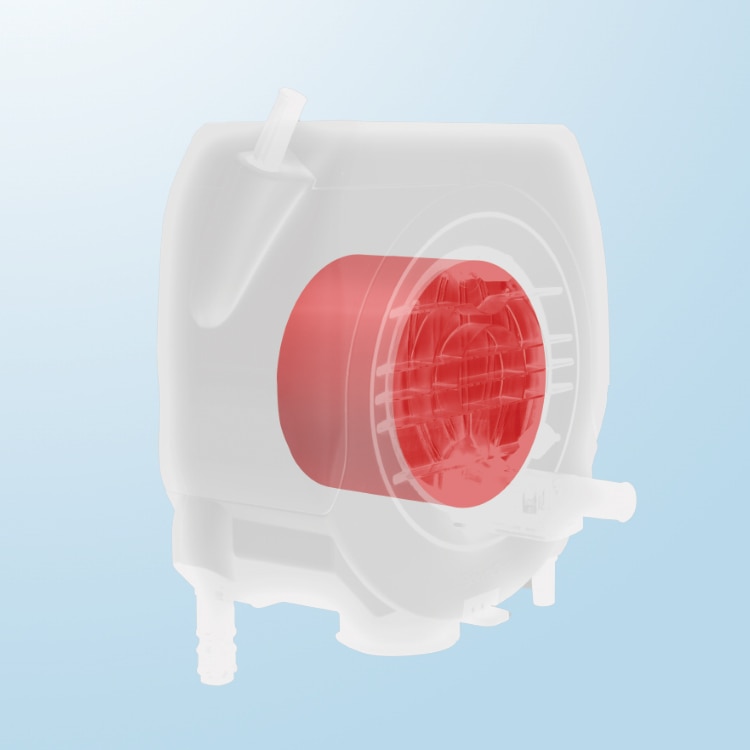

Circular shape

Eliminates corners, areas known for clotting


The Nautilus™ ECMO oxygenator has a transverse flow-path with a circular profile to minimize surface contact area while achieving a low blood-side pressure drop.

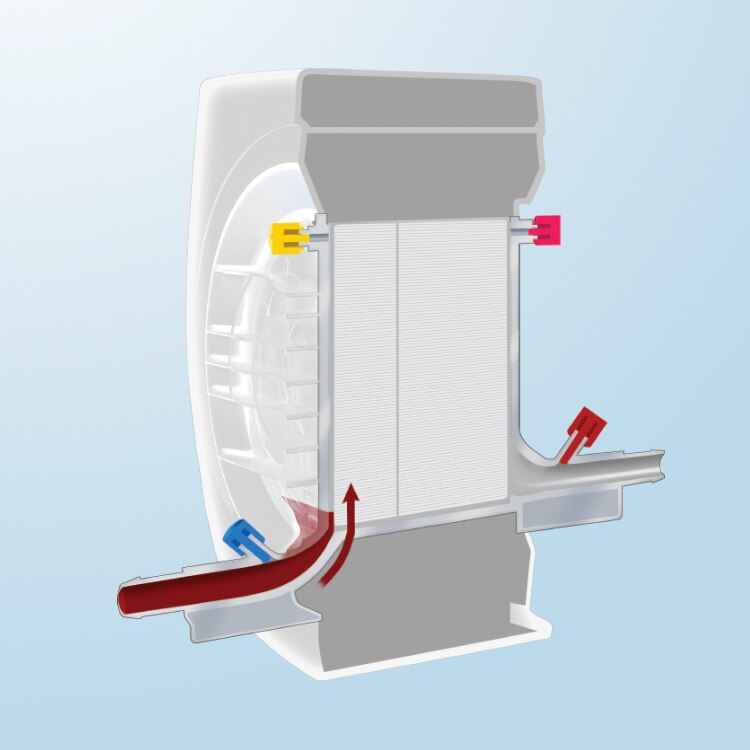

Guided inlet‡

Reduces velocity changes at the inlet where low flow and stasis may occur

The Nautilus™ ECMO oxygenator has a guided inlet that reduces velocity changes at the inlet where low flow and stasis may occur.

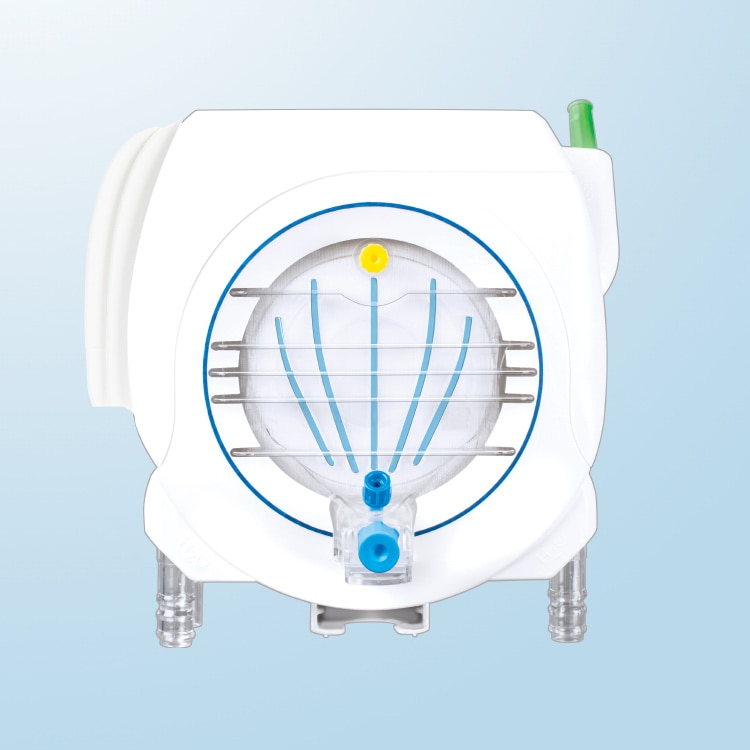

Filling vanes

Aid in even filling and even flow distribution across the membrane

The Nautilus™ Smart ECMO oxygenator is equipped with filling vanes that aid in even filling and even flow distribution across the membrane.

Performance data

Designed for durability and long-term performance1

Blood path pressure drop

This chart shows the blood path pressure drop of the Nautilus™ ECMO oxygenator.

Oxygen transfer

This chart shows the oxygen transfer rate of the Nautilus™ ECMO oxygenator.

Heat exchange performance factor

This chart shows the heat exchange performance factor of the Nautilus™ ECMO oxygenator.

Carbon dioxide transfer

This chart shows the carbon dioxide transfer rate of the Nautilus™ ECMO oxygenator.

Potential complications related to the use of ECMO devices include, but are not limited to, heart, vessel, or lung damage, hypoxia, anemia, irritation, toxic reaction, infection, hemorrhage, liver or kidney failure, stroke, and death. The benefits of extracorporeal support must be weighed against the risk of systemic anticoagulation and must be assessed by the prescribing physician.

Ordering information

Item number Description
48135 Nautilus™ Smart ECMO module
48160 Nautilus™ oxygenator holder
48150 Nautilus™ smart power supply
48155 Nautilus™ smart power cord

Resources

Related links

Similar products

† Indicated in the United States for use up to 48 hours.

‡ Patent pending.

  1. Design verification and validation data on file at MC3. These tests may not be indicative of clinical performance.
  2. Haneya A, Philipp A, Foltan M, Camboni D, Müeller T, Bein T, et al. First experience with the new portable extracorporeal membrane oxygenation system Cardiohelp for severe respiratory failure in adults. Perfusion. 2012 Mar;27(2):150–5. doi: 10.1177/0267659111432330.
  3. Alwardt CM, Wilson DS, Alore ML, et al. Performance and safety of an integrated portable extracorporeal life support system for adults. J Extra Corpor Technol. 2015;47(1):38–43.
  4. Lequier L, Horton SB, McMullan DM, Bartlett RH. Extracorporeal membrane oxygenation circuitry. Pediatr Crit Care Med. 2013;14(5 Suppl 1):S7–12. doi: 10.1097/PCC.0b013e318292dd10.
