Accurian™ RF ablation platform

<p>Accurian™ is a radiofrequency (RF) nerve tissue ablation platform that delivers consistent and predictable lesions and smart features for ease of use.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsFor safe use of the Accurian™ RF ablation system, the physician should have specific training, experience, and thorough familiarity with the use and application of this product.DescriptionThe generator is a four-channel radiofrequency ablation platform that allows monopolar deliveries with a dispersive electrode as well as bipolar deliveries between probes. RF energy is applied to the patient according to the configured settings to create lesions in tissue. The generator is capable of stimulating nerve cells by delivering low frequency stimulation pulses. It is nonsterile and reusable.IndicationsThe Accurian™ RF generator is intended for the creation of radiofrequency lesions in nervous tissue.ContraindicationsUse of the Accurian™ RF ablation system is contraindicated in patients with systemic infection or local infection in the area of the procedure.WarningsDo not use in patients who have electronic implants such as cardiac pacemakers, without first consulting a qualified professional (e.g., cardiologist). A possible hazard exists because interference with the action of the electronic implant may occur, or the implant may be damaged. Check the compatibility and safety of combinations of other physiological monitoring and electrical apparatus to be used on the patient while operating the Accurian™ RF ablation system. If the patient has a spinal cord, deep brain, or other stimulator, contact the manufacturer to determine if the stimulator needs to be in the off position. The procedure is to be performed with minimal to moderate sedation to allow the patient to remain in a communicative state for patient feedback; general anesthesia is not recommended.Adequate measures must be taken to minimize X-ray exposure while using fluoroscopy. This exposure can result in acute radiation injury as well as increased risk for somatic and genetic effects. Do not modify the equipment as this may compromise safety and efficacy. When the Accurian™ RF generator is activated, electrical fields may interfere with other electrical medical equipment. Ablation must be performed under fluoroscopic or ultrasonic guidance. Do not perform ablation without imaging as it can result in severe injury to the patient. Observe appropriate fire and electrical cautions at all times when the system is in use.Adverse eventsAs a consequence of electrosurgery, damage to surrounding tissue through iatrogenic injury can occur. Nerve injury including thermal injury or puncture of the spinal cord or nerve roots potentially results in radiculopathy, paresis, and paralysis. Potential complications include but are not limited to: infection including deep or superficial wound infection, bleeding, nerve damage, visceral injury, increased pain, pulmonary embolism, hemothorax or pneumothora, hemorrhage, and hematoma.For a complete description of the warnings, precautions, and possible adverse events associated with the Accurian™ RF ablation system, please see the following user manuals: Accurian™ connector hub, Accurian™ enhanced RF probe kit, Accurian™ pump unit and Accurian™ pump cable, Accurian™ RF cannula, Accurian™ radiofrequency generator, Accurian™ reusable RF probe, and Accurian™ single-use RF probe.

Features

Form consistent and predictable lesions across all channels

The ultra-responsive proprietary algorithm accurately regulates temperature — resulting in consistent and predictable lesion formation during the entire procedure on all active channels.
The SmartStart™ algorithm strategically distributes power to ensure that all channels reach and maintain the set temperature — reducing the risk of underpowered scenarios.

This is an illustration of the probe placement in the spine during a lateral ablation procedure.

Smart probes^†

On-screen identification helps you easily troubleshoot a specific channel
Chip-enhanced probes^†
On-screen tutorials

Manage four channels independently

Channel-specific start/stop/restart, temperature control and timer control mean you can manage four ablations independently — even mid-procedure.
Advanced power management allows four channels to start simultaneously — independently or staggered.

Boost efficiency with smart features

PDF procedure and reusable probe usage reports
14-ft combined hub and probe cables
Ability to self-test and self-calibrate with each generator start, reducing the need for maintenance

Technology features

Easily upgrade software via USB to minimize downtime
High-resolution 16:9 touchscreen
HDMI port for secondary monitor
Intuitive and easy-to-use design
Room for up to 10 treatment or physician profiles

Accurian™ enhanced RF

Internally cooled probes create larger, spherical lesions (compared to standard lesions) with greater distal projection.
Enhanced probes offer increased flexibility in approach angle (as much as 45% of lesion volume is projected distally to probe tip).
Add cooling pump for enhanced procedures with internally cooled probes.

The Accurian™ RF ablation platform utilizes a generator with probes, cannula, and return electrodes.

Ordering information

Generator, cooling pump, and hub

Item number	Description

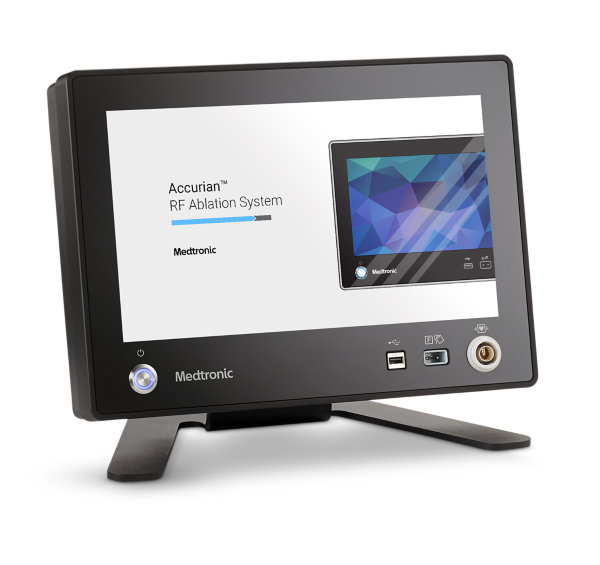

AG1000	Accurian™ RF generator with stand
AP1000	Accurian™ RF cooling pump with stand
APH100	Accurian™ standard cable hub
APH200	Accurian™ enhanced cable hub

Grounding pad

Item number	Description
E7507	Valleylab™ adult patient return electrode

Standard probes

Item number	Description	Length (cm)	Gauge
APSN050	Reusable probe nitinol	5	16–22
APSN100	Reusable probe nitinol	10	16–22
APSN150	Reusable probe nitinol	15	16–22
APSR050	Reusable probe stainless steel	5	16–22
APSR100	Reusable probe stainless steel	10	16–22
APSD050	Single-use probe stainless steel	5	16–22
APSD100	Single-use probe stainless steel	10	16–22
APSD150	Single-use probe stainless steel	15	16–22

Cannula

Item number	Length (cm)	Tip	Active tip (mm)	Gauge	Units per carton
AC0001	5	Curve sharp	10	16	10
AC0002	10	Curve sharp	10	16	10
AC0003	15	Curve sharp	10	16	10
AC0004	5	Curve sharp	10	18	10
AC0006	10	Straight sharp	10	18	10
AC0007	15	Curve sharp	10	18	10
AC0008	5	Curve sharp	10	20	10
AC0010	10	Straight sharp	10	20	10
AC0013	15	Straight sharp	10	20	10
AC0015	5	Curve sharp	5	22	10
AC0018	10	Curve sharp	10	22	10
AC0019	10	Straight sharp	10	22	10
AC0011	10	Curve blunt	10	20	10
AC0014	15	Curve blunt	10	20	10
AC0020	10	Curve blunt	10	22	10
AC0005	10	Curve sharp	10	18	10
AC0009	10	Curve sharp	10	20	10
AC0012	15	Curve sharp	10	20	10
AC0016	10	Curve sharp	5	22	10
AC0017	10	Straight sharp	10	22	10

Accurian™ enhanced introducers

Item number	Compatible with	Length (cm)	Tip (mm)	Units per carton
AI0001	APSC01 Accurian™ enhanced probe	5	4	10
AI0002	APSC02 Accurian™ enhanced probe	10	4	10
AI0003	APSC03 Accurian™ enhanced probe	15	4	10
AI0004	APSC04 Accurian™ enhanced probe	5	5.5	10
AI0005	APSC05 Accurian™ enhanced probe	10	5.5	10
AI0006	APSC06 Accurian™ enhanced probe	15	5.5	10
AI0007	APSC07 Accurian™ enhanced probe	5	2	10
AI0009	APSC08 Accurian™ enhanced probe	10	2	10

Enhanced internally cooled probe kits

Item number	Includes	Length (cm)	Tip (mm)	Gauge
APSC01	Cooled probe, introducer, and tubing kit	5	4	17
APSC02	Cooled probe, introducer, and tubing kit	10	4	17
APSC03	Cooled probe, introducer, and tubing kit	15	4	17
APSC04	Cooled probe, introducer, and tubing kit	5	5.5	17
APSC05	Cooled probe, introducer, and tubing kit	10	5.5	17
APSC06	Cooled probe, introducer, and tubing kit	15	5.5	17
APSC07	Cooled probe, introducer, and tubing kit	5	2	17
APSC09	Cooled probe, introducer, and tubing kit	10	2	17

Resources

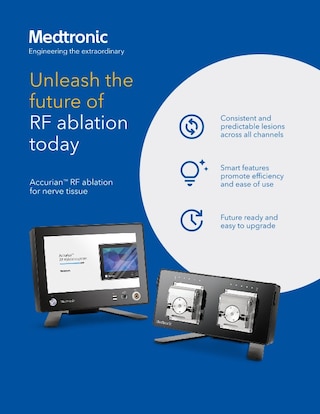

Accurian™ RF Ablation Product Brochure (open in new window)

View a brochure listing the features and components available with the Accurian™ RF ablation system.

PDF 1 MB

† Feature might be temporarily unavailable in standard single-use probes (Models APSDXXX).
