Superficial vein
ClosureFast™ radiofrequency ablation (RFA) system
<p>The ClosureFast™ procedure uses radiofrequency energy to treat patients with superficial vein disease.</p>
Overview
Data are from ClosureFast™ 7F studies. ClosureFast™ 6F catheter is designed to provide the same outcomes as established by ClosureFast™ 7F catheter.
Catheter inserted
into vein
Controlled heat
collapses vein
Catheter withdrawn,
closing vein
Deliver lasting results with gap-free thermal ablation
The ClosureFast™ procedure features a patented overlap of 0.5 cm at each thermal treatment segment, eliminating gaps between segments ― for lasting vein closure.1,3
6F profile, 8 cm heating length
1. 8 cm ablation
2. 0.5 cm overlap
3. 8 cm ablation
Note: 3 cm (7F) heating length available for shorter segments.
Data are from ClosureFast™ 7F studies. ClosureFast™ 6F catheter is designed to provide the same outcomes as established by ClosureFast™ 7F catheter.

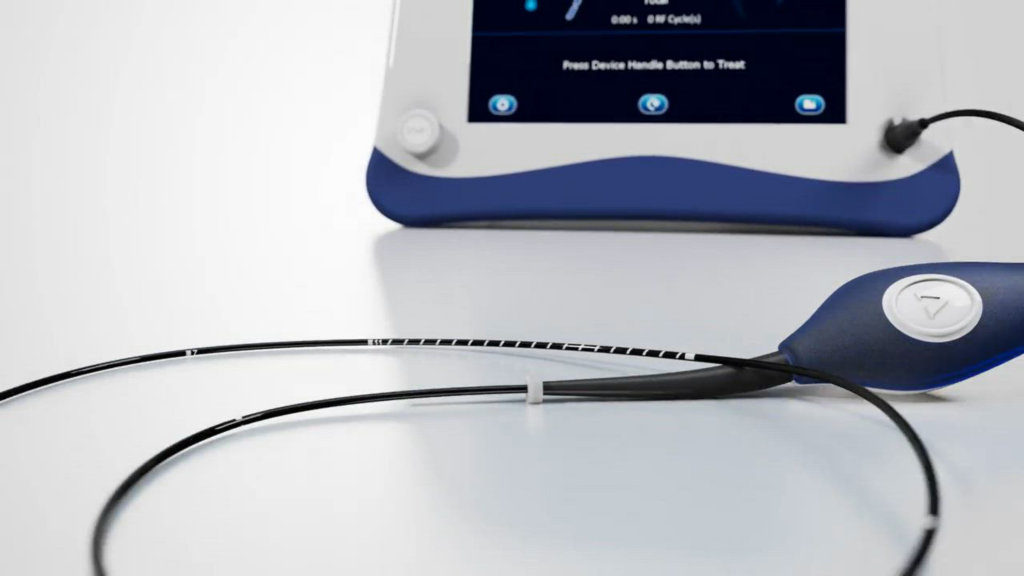

ClosureFast™ radiofrequency ablation catheter
- The ClosureFast™ radiofrequency ablation catheter precisely heats an 8 cm vein segment (or 3 cm for shorter, refluxing vein lengths) in one 20-second interval.
- The heat provided by the catheter shrinks and collapses the target vein, creating a fibrotic seal and occluding the vessel.
ClosureFast™ radiofrequency stylet
- The ClosureRFS™ radiofrequency stylet is an intravascular ablation device specifically intended for the treatment of incompetent perforator and tributary veins.
- This minimally invasive outpatient procedure leaves minimal scarring at the puncture site and can be either the primary treatment or an adjunct treatment using the ClosureFast™ radiofrequency ablation catheter.
ClosureFast™ radiofrequency generator
- The ClosureRFG™ generator delivers radiofrequency energy to the ClosureFast™ radiofrequency ablation catheter and the ClosureRFS™ radiofrequency stylet for the effective treatment of CVI.
- The controlled feedback mechanism monitors intravascular heat parameters in real time to automatically regulate therapeutic power.
Adverse events may include hematoma, phlebitis, skin injury, nerve injury, thrombophlebitis, thrombosis, and/or pulmonary embolism.
ClosureFast™ system catheter
| Item number | CF6-8-60 | CF6-8-100 | CF7-3-60 | CF7-7-60 | CF7-7-100 |
|---|---|---|---|---|---|
| Introducer sheath (min. ID size) | 6 Fr (2.0 mm) | 6 Fr (2.0 mm) | 7 Fr (2.3 mm) | 7 Fr (2.3 mm) | 7 Fr (2.3 mm) |
| Insertable length (cm) | 60 | 100 | 60 | 60 | 100 |
| Heating element diameter (mm) | 2.0 | 2.0 | 2.3 | 2.3 | 2.3 |
| Heating element length (cm) | 8 | 8 | 3 | 7 | 7 |
| Maximum power setting (W) | 40 | 40 | 18 | 40 | 40 |
| Default target temperature setting (C) | 120 | 120 | 120 | 120 | 120 |
| Software version: RFG2 | 4.0.0 or higher | 4.0.0 or higher | 4.4.0 or higher | 4.0.0 or higher | 4.0.0 or higher |
| Software version: RFG3 | 1.11.0 or higher | 1.11.0 or higher | 1.11.0 or higher | 1.11.0 or higher | 1.11.0 or higher |
| Compatible guidewire (in) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
ClosureRFS™ radiofrequency stylet
| Item number | Size (Fr) | Shaft type | Working length (cm) | Compatible guidewire (in) | Max. electrode diameter (Fr / mm) | Max. IV catheter (ga) |
|---|---|---|---|---|---|---|
| RFS2-6-12 | 6 | Rigid | 12 | 0.035 | 6 / 2.0 | 12 |
ClosureRFG™ generator
| Item number | Voltage | Height (cm / in) | Width (cm / in) | Depth (cm / in) | Weight (kg / lbs.) |
|---|---|---|---|---|---|
| RFG3 | Universal — 100-240 V | 26.7 / 10.5 | 34 / 13.4 | 17.3 / 6.8 | 6.8 / 15 maximum |
Related products
TM* Third-party brands are trademarks of their respective owners. All other brands are trademarks of a Medtronic company.
† Compared to ClosureFast 7F catheter and Venclose catheter in bench testing.
‡ Bench test data on file at Medtronic. N = 15 Venclose catheters and 30 each ClosureFast 6F and 7F catheters. Bench tests may not be indicative of clinical performance.
- Proebstle TM, Alm BJ, Göckeritz O, et al. Five-year results from the prospective European multicentre cohort study on radiofrequency segmental thermal ablation for incompetent great saphenous veins. Br J Surg. February 2015;102(3):212–218.
- Almeida JI, Kaufman J, Göckeritz O, et al. Radiofrequency endovenous ClosureFAST versus laser ablation for the treatment of great saphenous reflux: A multicenter, single-blinded, randomized study (RECOVERY Study). J Vasc Interv Radiol. June 2009;20(6):752–759.
- ClosureFast and ClosureFast RFS Patents. Medtronic data on file, 2022.
- Morrison N, Gibson K, Vasquez M, Weiss R, Jones A. Five-year extension study of patients from a randomized clinical trial (VeClose) comparing cyanoacrylate closure versus radiofrequency ablation for the treatment of incompetent great saphenous veins. J Vasc Surg Venous Lymphat Disord. November 2020;8(6):978–989.
- ClosureFast Procedures. Medtronic data on file, 2024.
- Medtronic ClosureFast Procedure Publications. Medtronic data on file, 2022.
This product is licenced with Health Canada as
CLOSURERFG RADIOFREQUENCY GENERATOR MDL 67865
CLOSURERFS ENDOVENOUS RADIOFREQUENCY STYLET MDL 101072
CLOSUREFAST ENDOVENOUS RADIOFREQUENCY ABLATION (RFA) CATHETER MDL 16574 and 111057
