View the product brochure for the Concerto Versa™ detachable coil.
Peripheral embolization products

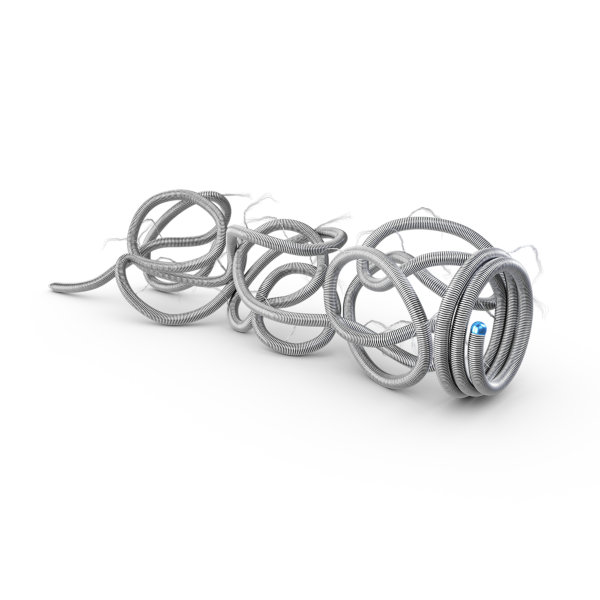

Concerto Versa™ detachable coil
<p>The Concerto Versa™ detachable coil is indicated for arterial and venous embolization in the peripheral vasculature.</p>
Product details
See the Concerto Versa™ detachable coil in action.
View the deployment of Concerto Versa™ coil in vessel and aneurysm.
Features
More compatible
Built with unparalleled catheter compatibility, the Concerto Versa™ detachable coil lets you address complex anatomies without sacrificing speed or precision.1
† Compared to other microcatheter-compatible coils when a 4 Fr diagnostic catheter (ID ≤ 0.042”) can be used to reach the embolization target.
Each coil has the flexibility to be used with diagnostic catheter or microcatheter.
- 4 Fr diagnostic
- Coil
- 4 Fr diagnostic
- High-flow micro
- Coil
More volume
Designed with thick diameters and longer lengths to reduce the number of coils needed per procedure‡,1
‡ Compared to any other microcatheter-compatible coil commercially available.
§ Compared to AZUR™* CX 35 and Interlock™*-35 for equivalent treatment options.
Shape 1: Multi-sphere
Diameters 3–14 mm
Designed to position and pack
- Oversized first spiral for positioning
- Oversized first sphere for framing
Following spheres can:
- Pack into the first sphere
- Stack behind the first sphere
Shape 2: Sphere
Diameters 16–32 mm
Designed to frame and fill
- Undersized first loop for easy formation
- Complex shape for framing or filling
More control
Combining high-volume capacity with small-coil control, the Concerto Versa™ detachable coil backs you up throughout your procedures:
Made for more
The Concerto Versa™ detachable coil provides more volume,3 on average:
31%
more volume per coil than Ruby™* Standard
33%
more volume per coil than Ruby™* Soft
25%
more volume per coil than AZUR™* CX 35
204%
more volume per coil than Embold™* Fibered
95%
more volume per coil than Interlock™*-35
Fewer Concerto Versa™ coils are needed to fill a given volume.3
Coils required on average for one Concerto Versa™ coil:
- Concerto Versa™: 1
- AZUR™* CX 35: 1.2
- Ruby™* Standard: 1.3
- Ruby™* Soft: 1.3
- Interlock™*-35: 2
- Embold™* Fibered: 3
Frequently asked questions
The Concerto Versa™ detachable coil is indicated for arterial and venous embolization in the peripheral vasculature. It’s designed to deliver more volume per coil3 thanks to its large diameter and longer lengths and versatility thanks to its dual catheter compatibility.1
The Concerto Versa™ detachable coil comes in multi-sphere and sphere shapes. The multi-sphere shape is designed to position and pack, available in diameters 3 to 14 mm. The sphere shape is designed to frame and fill, available in diameters 16 to 32 mm.
The Concerto Versa™ detachable coil offers more catheter compatibility for embolization procedures. Each coil has the flexibility to be used with a microcatheter or a diagnostic catheter.
The Concerto Versa™ detachable coil is designed to deliver more volume per coil, helping to fill a given volume with fewer coils compared to other microcatheter-compatible coils.3
Fibers on embolization coils like the Concerto Versa™ detachable coil increase thrombogenicity compared to bare metal coils.2
Ordering information
| CFN | Diameter (mm) | Length (cm) |
Shape |
|---|---|---|---|
| CV-3-5 | 3 | 5 | Multi-sphere |
| CV-3-15 | 3 | 15 | Multi-sphere |
| CV-4-5 | 4 | 5 | Multi-sphere |
| CV-4-15 | 4 | 15 | Multi-sphere |
| CV-5-20 | 5 | 20 | Multi-sphere |
| CV-5-30 | 5 | 30 | Multi-sphere |
| CV-6-20 | 6 | 20 | Multi-sphere |
| CV-6-40 | 6 | 40 | Multi-sphere |
| CV-7-20 | 7 | 20 | Multi-sphere |
| CV-7-40 | 7 | 40 | Multi-sphere |
| CV-8-20 | 8 | 20 | Multi-sphere |
| CV-8-40 | 8 | 40 | Multi-sphere |
| CV-9-20 | 9 | 20 | Multi-sphere |
| CV-9-40 | 9 | 40 | Multi-sphere |
| CV-10-20 | 10 | 20 | Multi-sphere |
| CV-10-40 | 10 | 40 | Multi-sphere |
| CV-12-30 | 12 | 30 | Multi-sphere |
| CV-12-50 | 12 | 50 | Multi-sphere |
| CV-14-40 | 14 | 40 | Multi-sphere |
| CV-14-65 | 14 | 65 | Multi-sphere |
| CV-16-40 | 16 | 40 | Sphere |
| CV-16-65 | 16 | 65 | Sphere |
| CV-18-40 | 18 | 40 | Sphere |
| CV-18-65 | 18 | 65 | Sphere |
| CV-20-40 | 20 | 40 | Sphere |
| CV-20-65 | 20 | 65 | Sphere |
| CV-24-40 | 24 | 40 | Sphere |
| CV-24-65 | 24 | 65 | Sphere |
| CV-28-40 | 28 | 40 | Sphere |
| CV-28-65 | 28 | 65 | Sphere |
| CV-32-40 | 32 | 40 | Sphere |
| CV-32-65 | 32 | 65 | Sphere |
Related products
-
Concerto™ detachable coil systemThe Concerto™ detachable coil system is indicated for the arterial and venous embolization in the peripheral vasculature.
-
MVP™ micro vascular plug systemThe MVP™ micro vascular plug system is indicated to obstruct or reduce the rate of blood flow in the peripheral vasculature.
-
Rebar™ reinforced micro catheterThe Rebar™ micro catheter is an end-hole, single-lumen catheter designed to be introduced over a steerable guidewire into the vasculature.
™* Third party brands are trademarks of their respective owners.
- D01346573_A Design characterization report Concerto Versa 2.0. Medtronic data on file. Bench and animal testing may not be indicative of clinical performance.
- Girdhar G, Read M, Sohn J, Shah C, Shrivastava S. In-vitro thrombogenicity assessment of polymer filament modified and native platinum embolic coils. J Neurol Sci. 2014;339(1–2):97–101. doi:10.1016/j.jns.2014.01.030.
- D01448665_A Design characterization report Concerto Versa Coil Volume and Shelf Inventory Report. Medtronic data on file.
