Thrombectomy devices

Excipio™* thrombectomy devices

<p>Excipio™* thrombectomy devices provide controlled aspiration for nonsurgical removal of soft (Excipio™* SV) emboli and thrombi from peripheral blood vessels.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsExcipio™* SV Thrombectomy DeviceIndication for Use: The Excipio SV Thrombectomy Device is indicated for the non-surgical removal of soft emboli and thrombi from peripheral blood vessels.Contraindications:
• Not intended for use in the coronaries or the neuro-vasculature.
• Do not use on patients with known hypersensitivity to nickel-titanium.Potential Adverse Effects: Possible complications include, but are not limited to the following: access site complications, allergic reaction, arterial dissection, arterial thrombosis, death, distal embolization of blood clots and atherosclerotic plaque, hematoma, hemorrhage, ischemia, infection, perforation and/or vessel rupture, tip separation and distal embolization, vasospasmIndications, contraindications, warnings and instructions for use can be found in the product labeling supplied with each device, or contact a Medtronic representative.CAUTION: Federal law (USA) restricts this device to sale by or on the order of a physician. Rx only.Excipio™* LV and LV Prime Thrombectomy DevicesIndication for Use: The Excipio LV Thrombectomy Device and Excipio LV PRIME Thrombectomy Device are indicated for the nonsurgical removal of emboli and thrombi from peripheral blood vessels.Contraindications:Not intended for use in the coronary arteries, pulmonary vasculature or neuro vasculature. Do not use on patients with known hypersensitivity to nickel-titanium.Potential Adverse Effects: Possible complications include, but are not limited to the following: access site complications, acute occlusion, allergic reaction, arrythmia, anemia, death, hematoma or hemorrhage at access site, hemorrhage, hypotension, inability to completely remove thrombus, intimal disruption, ischemia, infection, renal impairment or acute renal failure from contrast media, thromboembolic events, tip separation and distal embolization; vessel spasm, thrombosis, dissection, or perforation.Indications, contraindications, warnings and instructions for use can be found in the product labeling supplied with each device, or contact a Medtronic representative.CAUTION: Federal law (USA) restricts this device to sale by or on the order of a physician. Rx only.™* Third party brands are properties of their respective owner.UC202600651EN

Product details

Excipio™* devices are available in three sizes: SV, LV, and LV Prime. See the ordering information below for specifications.

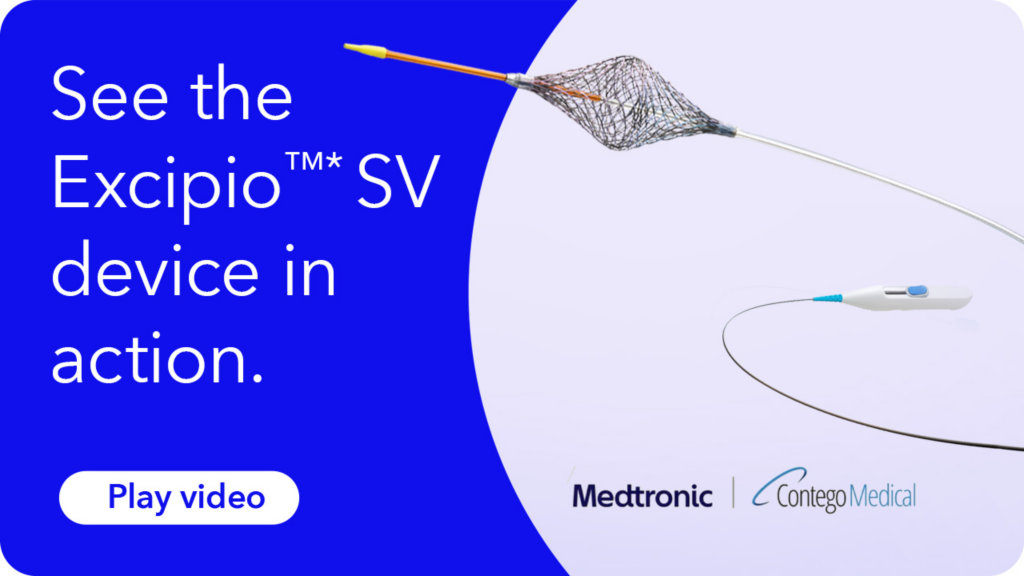

See the Excipio™* SV device in action.

Indication

The Excipio™* SV thrombectomy device is indicated for the nonsurgical removal of soft emboli and thrombi from peripheral blood vessels. The Excipio™* LV thrombectomy device and Excipio™* LV Prime thrombectomy device are indicated for the nonsurgical removal of emboli and thrombi from peripheral blood vessels.

Specifications

Combined therapy

Expandable basket used with aspiration enables clot disruption and removal

Basket control

Slider mechanism allows physicians to open/close the basket, adjusting its size to varying vessel anatomy

Guidewire access

Access can be maintained to support easy exchanges and multiple passes without system removal

Handle
Slider button
Effective length
Basket length

This is an image of the Excipio™* thrombectomy device with numbered callouts of the individual parts of the system.

Ordering information

Item number	Description	Native vessel diameters (mm)	Nitinol basket length, closed (mm)	Effective length (cm)	Max crossing profile (OD) (basket)	Guidewire compatibility (in)	Aspiration catheter size compatibility (minimum)
EXC-0940-165	Excipio™* SV thrombectomy device	4–8	34	165	1.68 mm (0.066 in)	0.014	7 Fr 2.08 mm (ID)
EXC-1607-150	Excipio™* LV Prime thrombectomy device	6–16	70	150	3.05 mm (0.120 in)	0.035	12 Fr 3.05 mm (ID)
EXC-2510-125	Excipio* LV thrombectomy device	10–25	100	125	4.06 mm (0.160 in)	0.035	16 Fr 4.19 mm (ID)

Item number

Description

Native vessel diameters (mm)

Nitinol basket length, closed (mm)

Effective length (cm)

Max crossing profile (OD) (basket)

Guidewire compatibility (in)

Aspiration catheter size compatibility (minimum)

EXC-0940-165

Excipio™* SV thrombectomy device

4–8

165

1.68 mm (0.066 in)

0.014

7 Fr

2.08 mm (ID)

EXC-1607-150

Excipio™* LV Prime thrombectomy device

6–16

150

3.05 mm (0.120 in)

0.035

12 Fr

3.05 mm (ID)

EXC-2510-125

Excipio* LV thrombectomy device

10–25

100

125

4.06 mm (0.160 in)

0.035

16 Fr

4.19 mm (ID)

Resources

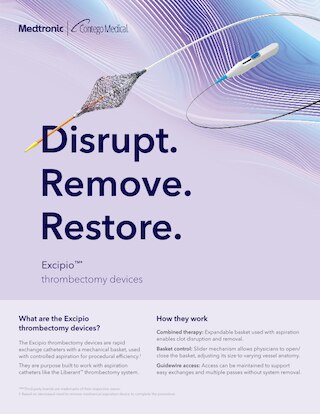

Excipio™* Thrombectomy Devices Info Sheet (open in new window)

Download this information sheet to see details of Excipio™* devices.

PRODUCT PDF 1 MB

TM* Third-party brands are trademarks of their respective owners.

† Based on decreased need to remove mechanical aspiration device to complete the procedure.
