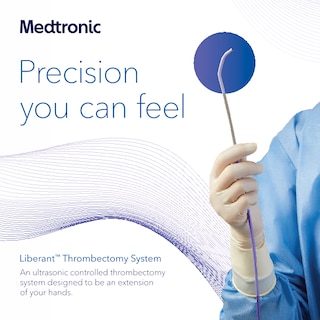

Download the brochure to see details about the Liberant™ thrombectomy system.
Thrombectomy devices
Liberant™ thrombectomy system
<p>The Liberant™ device is an ultrasonic-controlled thrombectomy system for use in the peripheral arterial and venous vessels.</p>
Indication: The Liberant™ thrombectomy system is indicated for the removal of fresh, soft emboli or thrombi from the vessels of the peripheral arterial and venous systems.
Product details
Learn about the Liberant™ system.
Precision you can feel in your thrombectomy procedures
An intuitive, adaptive, and comprehensive thrombectomy system

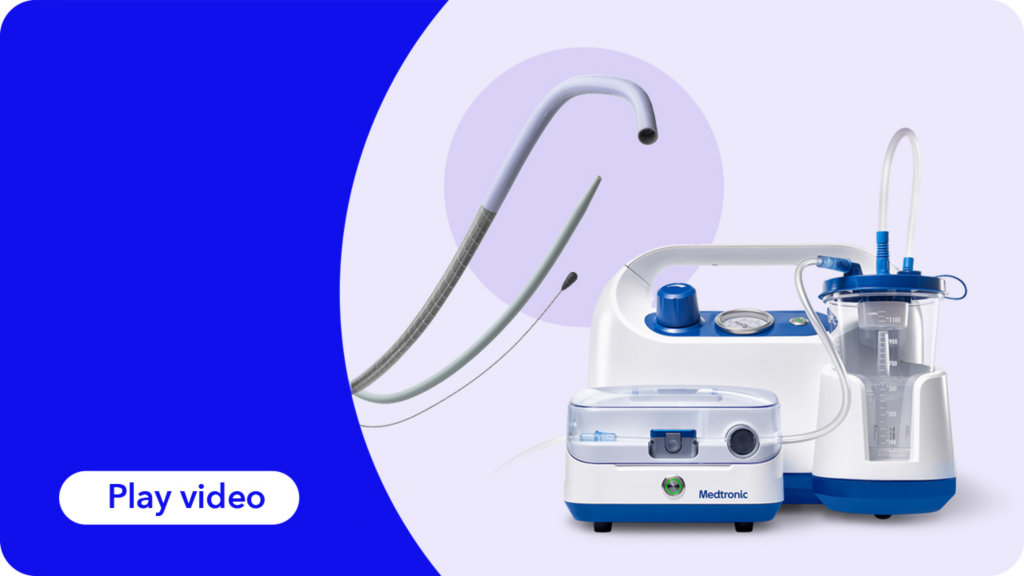

This system includes a catheter, dilator, and clotbuster — all in one set. The pump and BCU come as capital components to be used case after case.
Use the arrows or your pointing device to rotate the images.
Liberant™ thrombectomy
system 12 Fr catheter
Liberant™ thrombectomy
system 12 Fr catheter with dilator
Liberant™ thrombectomy
system 12 Fr catheter with clotbuster

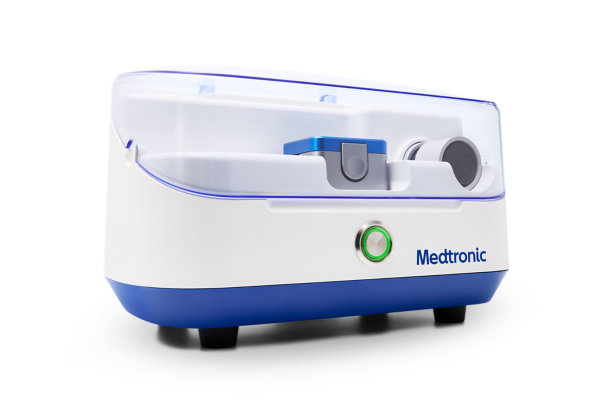

Liberant™ thrombectomy

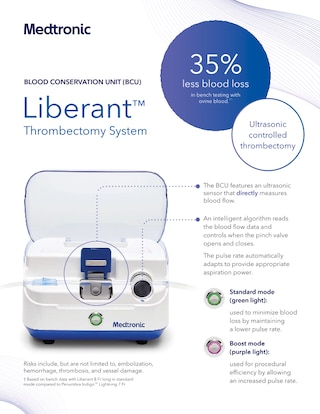

system BCU
Adapts to real data in real time
The BCU features an ultrasonic sensor that directly measures blood flow. Next, an intelligent algorithm automatically adapts the pulse rate to provide appropriate aspiration power, with two modes available.
35% less blood loss
in bench testing with
ovine blood†,1
Standard mode (green light)
Used to minimize blood loss by maintaining a lower pulse rate
Boost mode (purple light)
Used for procedural efficiency by allowing an increased pulse rate
Risks include, but are not limited to, embolization, hemorrhage, thrombosis, and vessel damage.
Ultimate control in your hands
The catheters are easy to deliver with an atraumatic and angled tip‡ for more effective,§ wall-to-wall clot removal.1 A hybrid braid-coil design improves torque response.◊,1
>> HERE IS THE CODE. Open/Copy this component for the Blue circle custom HTML/CSS code
- Hybrid coil design
- Clotbuster assists with fragmentation of thrombus and clearing of the catheter lumen if blocked
- Dilator offers support during delivery of the catheter and minimizes vessel wall trauma while advancing to the site of the thrombus
- Angled tip
Proven performance, vessel by vessel2
Available in
three French sizes,
allowing for flexibility in the treatment of arterial, venous, and arteriovenous vessels
- 6 Fr
- 8 Fr Short
- 8 Fr Long
- 12 Fr
Liberant™ RX aspiration catheter
is available in 5 Fr for the treatment of arterial vessels.
BCU intended for direct use with 6 Fr, 8 Fr Short and Long, and 12 Fr catheters and is not intended for direct use with Liberant™ RX aspirational 5 Fr catheter.
Frequently asked questions
Thrombectomy is a procedure to remove a blood clot (called a thrombus) from a blood vessel. Blood clots can block the flow of blood, which can be dangerous and even life-threatening if not treated quickly.
The Liberant™ device is the sole thrombectomy system that uses ultrasonic control. It dynamically adjusts the aspiration power in real time based on the blood flow measurements obtained directly from its ultrasonic sensor.
The BCU, part of the Liberant™ thrombectomy system, features an ultrasonic sensor that measures blood flow directly and processes data in real time with an intelligent algorithm. This enables the pinch valve to open and close, adjusting the aspiration power dynamically.
The BCU has two operating modes:
- Standard mode is used to minimize blood loss by maintaining a lower pulse rate.
- Boost mode is used for procedural efficiency by allowing an increased pulse rate.
Risks include, but are not limited to, embolization, hemorrhage, thrombosis, and vessel damage.
Capital components
- Blood conservation unit and Riptide™ aspiration pump
Disposable components
- Riptide™ collection canister with intermediate tubing
- Set including catheter in the size of choice, dilator, clotbuster, aspiration tubing, and hemostasis valve
Liberant™ thrombectomy system catheters are available in 5 Fr (Liberant™ RX), 6 Fr, 8 Fr Short, 8 Fr Long, and 12 Fr.
Ordering information
Liberant™ system capital components
| Item number | Description |
| LMT-BCU | Liberant™ BCU |
| LMT-RAP | Riptide™ aspiration pump, peripheral vascular |
Liberant™ system disposable component
| Item number | Description |
| LMT-RCT | Riptide™ collection canister with intermediate tubing |
Liberant™ thrombectomy sets
| Item number | Description | Size (Fr) | Catheter shape | Working length (cm) | Catheter outer diameter (mm) |
| LMT-CT6 | Liberant™ thrombectomy set | 6 | Straight | 135 | 2.16 |
| LMT-CT8S | Liberant™ thrombectomy set | 8 Short | Single angled | 50 | 2.80 |
| LMT-CT8L | Liberant™ thrombectomy set | 8 Long | Single angled | 115 | 2.80 |
| LMT-CT12 | Liberant™ thrombectomy set | 12 | Double angled | 115 | 3.99 |
Liberant™ thrombectomy sets consist of a catheter, dilator, clotbuster, aspiration tubing, and hemostasis valve.
Related products
-
Excipio™* thrombectomy devicesExcipio™* thrombectomy devices provide controlled aspiration for nonsurgical removal of soft (Excipio™* SV) emboli and thrombi from peripheral blood vessels.
-
Liberant™ RX aspiration catheterThe Liberant™ RX device is a 5 Fr aspiration catheter for thrombectomy procedures in arterial vessels.
TM* Third-party brands are trademarks of their respective owners.
† Based on bench data with Liberant™ system 8 Fr Long in standard mode compared to Penumbra Indigo™* Lightning 7 Fr.
‡ On 8 Fr and 12 Fr.
§ Based on bench data measuring maneuverability.
◊ Based on bench data with Liberant™ system 8 Fr and 12 Fr compared to Penumbra Indigo™* Lightning 7 Fr and Lightning 12 Fr. Torque response at 180 degrees.
- D01380628. In-vitro marketing testing on Liberant™ and Penumbra’s Indigo™* system report. Medtronic data on file. Bench testing may not be indicative of clinical performance.
- D01320615. Design verification report for the Liberant™ thrombectomy system. Medtronic data on file.
