Detachable coils
Axium™ Prime extra soft coil

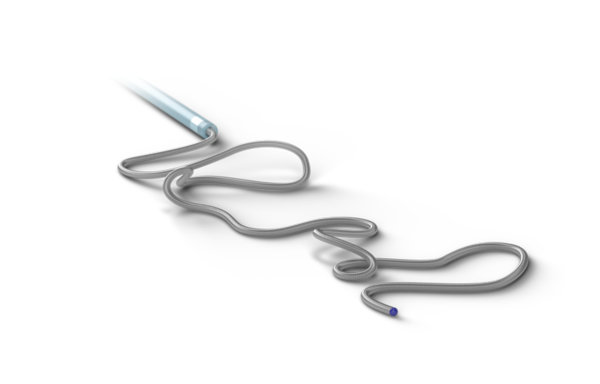

The Axium™ Prime extra soft coil is designed to maximize packing without sacrificing softness in treating intracranial aneurysms.
Description
Axium™ Prime extra soft coils are intended for the endovascular embolization of intracranial aneurysms. Axium™ Prime extra soft coils are also intended for the embolization of other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.1
Greater packing volume
Larger .0108" outer diameter (OD)†,2
Extra soft implant
0.0013" thinner primary wire leads to a softer coil paired with a precisely-matched OD to fill and finish more space‡2–5
Random break design
Due to its winding pattern, when the coil encounters resistance it can more easily deflect and seek out open spaces3
46% softer§,6
Compared to Target Nano™*
† Data derived from reference bench testing may not be representative of clinical performance.
‡ Compared to Axium Prime Super Soft coils.
§ Data derived from reference bench testing may not be representative of clinical performance. n=22.
Features
Axium™ coil family provides optimal implant designs for a variety of coiling procedures with our framing, filling, and finishing coils. Axium™ products provide proven softness, high-volume packing, minimal kickback, and exceptional detachment.◊,3,4,7–11
The entire Axium™ family of coils features a progressive outer diameter matched to the implant size, which optimizes stability and volume throughout the entire coil line.7
◊ Based on bench test comparing average work number of Axium™ Prime extra soft coil versus Target® Nano™ coil. 20 units of each coil were tested. Bench testing is not indicative of clinical performance.; Determined using formula for cylinder (volume = πr2 x length). Based on calculated k-factor values.
¶ Data derived from reference bench testing may not be representative of clinical performance.
Characteristics
Coil outer diameter (in) | 0.0115 | 0.0125 | 0.0135 | 0.0145 |
Diameter (mm) | 3.0–3.5 | 4.0–6.0 | 7.0–10.0 | 12.0–25.0 |
Length (cm) | 6–10 | 6.0–25.0 | 12.0–40.0 | 30.0–50.0 |
Volume (mm3) | 4.02–6.70 | 4.75–19.79 | 11.08–36.94 | 31.96–53.27 |
Ordering information
Item number | Coil diameter (mm) | Implant length (cm) | Primary coil outer diameter (in) |
---|---|---|---|
APB-1-2-3D-ES | 1 | 2 | 0.0108 |
APB-1-3-3D-ES | 1 | 3 | 0.0108 |
APB-1-4-3D-ES | 1 | 4 | 0.0108 |
APB-1.5-2-3D-ES | 1.5 | 2 | 0.0108 |
APB-1.5-3-3D-ES | 1.5 | 3 | 0.0108 |
APB-1.5-4-3D-ES | 1.5 | 4 | 0.0108 |
APB-2-2-3D-ES | 2 | 2 | 0.0108 |
APB-2-3-3D-ES | 2 | 3 | 0.0108 |
APB-2-4-3D-ES | 2 | 4 | 0.0108 |
APB-2.5-4-3D-ES | 2.5 | 4 | 0.0108 |
APB-2.5-6-3D-ES | 2.5 | 6 | 0.0108 |
APB-3-4-3D-ES | 3 | 4 | 0.0108 |
APB-3-6-3D-ES | 3 | 6 | 0.0108 |
APB-3-8-3D-ES | 3 | 8 | 0.0108 |
APB-3.5-6-3D-ES | 3.5 | 6 | 0.0108 |
APB-3.5-8-3D-ES | 3.5 | 8 | 0.0108 |
APB-3.5-10-3D-ES | 3.5 | 10 | 0.0108 |
Axium™ Prime extra soft helix coils
Item number | Coil diameter (mm) | Implant length (cm) | Primary coil outer diameter (in) |
---|---|---|---|
APB-1-1-HX-ES | 1 | 1 | 0.0108 |
APB-1-2-HX-ES | 1 | 2 | 0.0108 |
APB-1-3-HX-ES | 1 | 3 | 0.0108 |
APB-1.5-1-HX-ES | 1.5 | 1 | 0.0108 |
APB-1.5-2-HX-ES | 1.5 | 2 | 0.0108 |
APB-1.5-3-HX-ES | 1.5 | 3 | 0.0108 |
APB-1.5-4-HX-ES | 1.5 | 4 | 0.0108 |
APB-2-1-HX-ES | 2 | 1 | 0.0108 |
APB-2-2-HX-ES | 2 | 2 | 0.0108 |
APB-2-3-HX-ES | 2 | 3 | 0.0108 |
APB-2-4-HX-ES | 2 | 4 | 0.0108 |
APB-2-6-HX-ES | 2 | 6 | 0.0108 |
APB-2-8-HX-ES | 2 | 8 | 0.0108 |
APB-2.5-3-HX-ES | 2.5 | 3 | 0.0108 |
APB-2.5-4-HX-ES | 2.5 | 4 | 0.0108 |
APB-2.5-6-HX-ES | 2.5 | 6 | 0.0108 |
APB-2.5-8-HX-ES | 2.5 | 8 | 0.0108 |
APB-3-4-HX-ES | 3 | 4 | 0.0108 |
APB-3-6-HX-ES | 3 | 6 | 0.0108 |
APB-3-8-HX-ES | 3 | 8 | 0.0108 |
APB-3-10-HX-ES | 3 | 10 | 0.0108 |
Related products
Similar products
-
Axium™ MicroFX™ coil
The Axium MicroFX™ coil is designed to reduce blood flow across aneurysms and offers an alternative to bare coils in treating intracranial aneurysms.
-
Axium™ Prime frame coil
The Axium™ Prime frame coil has a unique hybrid loop configuration and is a stable first coil option for various aneurysm shapes and neck sizes.
-
Axium™ Prime soft coil
The Axium™ Prime soft coil has a thin wire and winding pattern to seek open spaces for treating intracranial aneurysms.
-
Axium™ QC coil
The Axium™ QC coil comes in 83 sizes and has a high packing volume to treat intracranial aneurysms.
TM* Third party brands are trademarks of their respective owners.
- Axium™ Prime extra soft coil Instructions for Use: M045840CDOC2 Rev. D.
- White JB, Ken CG, Cloft HJ, Kallmes DF. Coils in a nutshell: a review of coil physical properties. AJNR Am J Neuroradiol. 2008 Aug;29(7):1242-6.
- Based on internal test report, TR-NV12051 Axium Prime Finishing Coils Design Validation Report. March 2015.
- Based on internal test report TR-NV12197, Axium Prime 1.5mm 3D Finishing Coils Design Verification and Validation Adoption. Rev B.
- Based on internal test report TR-NV12253, IDTE Competitive Coil Pliability Study; 2.5mm x 4cm. Rev A.
- Based on internal test report D01070173. Competitive Test Report for Axium™. December 2023.
- Based on internal test report TR-NV14378. Axium™ Prime Coil Softness (k-factor). October 2017.
- Based on internal test report TR-NV12442. Bench test comparing average work number of Axium™ Prime Extra Soft coil versus Target™* Nano™* coil. 20 units of each coil were tested. September 2015.
- Based on internal test report TRNV-10304, Axium Prime Super Soft Design Validation Report. Rev A.
- Based on internal test report TR09-218, Axium Prime Reliability Test Report. Rev A.
- Based on internal test report TR-NV13164, Design Verification and Validation Adoption Report Fitz Roy. Rev C.
- Based on internal test report D00776522, Axium, Axium Prime, Concerto Competitor Detachment Reliability Marketing Report. Rev A.
- Based on internal test report TR10-126, NG Axium Pusher Unibody Feasibility Report. Rev A.
- Based on internal test report TR-NV12481, Axium Prime Coil Extra Soft Field Training Material. Rev A.
- Based on internal test report TR-NV13175, Fitz Roy Design Verification Test Report. Rev D.
- Based on internal test report FD3117, Implant Articulation Test, Axium/Axium Prime Vs. Competitors. Rev A.
- Based on internal test report FD3118, Implant Layup Test, Axium/Axium Prime Vs. Competitors. Rev A.
