Detachable coils

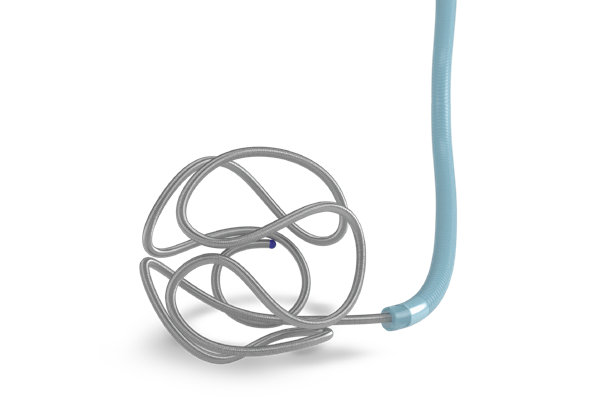

Axium™ QC coil

The Axium™ QC coil comes in 83 sizes and has a high packing volume to treat intracranial aneurysms.

Ordering information
Contact a representative
Indications, Safety, and Warnings

Description

Axium™ QC coils are intended for the endovascular embolization of intracranial aneurysms. Axium™ QC coils are also intended for the embolization of other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.1

Open loop design2

Conformable to all aneurysm shapes, including irregular making it a single solution coil

Versatile portfolio, one delivery system

Provides a complete portfolio for all embolization needs1

Features

Axium™ coil family provides optimal implant designs for a variety of coiling procedures with our framing, filling, and finishing coils. Axium™ products provide proven softness, high-volume packing, minimal kickback, and exceptional detachment.†, 3–9

99.7%

Proven reliability with first attempt detachment success8–10





Better trackability through tortuous anatomy‡,11-13

Distal tapered pusher design allows for increased articulation and enhanced trackability12,14

Minimal micro catheter kick-back

Ball and socket design allows for 360° axial rotation which facilitates coil delivery with less micro catheter kick-back12–15

The entire Axium™ family of coils feature a progressive outer diameter matched to the implant size, which optimizes stability and volume throughout the entire coil line.3


† Based on bench test comparing average work number of Axium™ Prime extra soft coil versus Target® Nano™ coil. 20 units of each coil were tested. Bench testing is not indicative of clinical performance.; Determined using formula for cylinder (volume = πr2 x length). Based on calculated k-factor values

‡ Data derived from reference bench testing may not be representative of clinical performance.

Characteristics

  3-D Helix
Coil outer diameter (in) 0.0115–0.0145 0.0115–0.0145
Diameter (mm) 2–25 1.5–20
Length (cm) 2–50 1–50
Volume (mm3) 1.34–53.27 0.67–3.27

Ordering information

Axium™ QC helix coils

Item number Coil diameter (mm) Implant length (cm) Primary coil outer diameter (in)
QC-2.5-4-HELIX 2.5 4 0.0115
QC-2.5-6-HELIX 2.5 6 0.0115
QC-2.5-8-HELIX 2.5 8 0.0115
QC-1.5-1-HELIX 1.5 1 0.0115
QC-1.5-2-HELIX 1.5 2 0.0115
QC-1.5-3-HELIX 1.5 3 0.0115
QC-1.5-4-HELIX 1.5 4 0.0115
QC-10-20-HELIX 10 20 0.0135
QC-10-30-HELIX 10 30 0.0135
QC-12-30-HELIX 12 30 0.0145
QC-12-40-HELIX 12 40 0.0145
QC-14-30-HELIX 14 30 0.0145
QC-14-40-HELIX 14 40 0.0145
QC-16-30-HELIX 16 30 0.0145
QC-16-40-HELIX 16 40 0.0145
QC-18-40-HELIX 18 40 0.0145
QC-2-1-HELIX 2 1 0.0115
QC-2-2-HELIX 2 2 0.0115
QC-2-3-HELIX 2 3 0.0115
QC-2-4-HELIX 2 4 0.0115
QC-2-6-HELIX 2 6 0.0115
QC-2-8-HELIX 2 8 0.0115
QC-2.5-2-HELIX 2.5 2 0.0115
QC-20-40-HELIX 20 40 0.0145
QC-20-50-HELIX 20 50 0.0145
QC-3-4-HELIX 3 4 0.0115
QC-3-6-HELIX 3 6 0.0115
QC-3-8-HELIX 3 8 0.0115
QC-4-10-HELIX 4 10 0.0125
QC-4-12-HELIX 4 12 0.0125
QC-4-8-HELIX 4 8 0.0125
QC-5-15-HELIX 5 15 0.0125
QC-5-20-HELIX 5 20 0.0125
QC-6-20-HELIX 6 20 0.0125
QC-7-20-HELIX 7 20 0.0135
QC-7-30-HELIX 7 30 0.0135
QC-8-20-HELIX 8 20 0.0135
QC-8-30-HELIX 8 30 0.0135
QC-9-20-HELIX 9 20 0.0135
QC-9-30-HELIX 9 30 0.0135

Axium™ QC 3-D coils

Item number Coil diameter (mm) Implant length (cm) Primary coil outer diameter (in)
QC-10-20-3D 10 20 0.0135
QC-10-30-3D 10 30 0.0135
QC-12-30-3D 12 30 0.0145
QC-12-40-3D 12 40 0.0145
QC-14-30-3D 14 30 0.0145
QC-14-40-3D 14 40 0.0145
QC-16-40-3D 16 40 0.0145
QC-18-40-3D 18 40 0.0145
QC-2-2-3D 2 2 0.0115
QC-2-4-3D 2 4 0.0115
QC-2-6-3D 2 6 0.0115
QC-2.5-2-3D 2.5 2 0.0115
QC-2.5-4-3D 2.5 4 0.0115
QC-2.5-6-3D 2.5 6 0.0115
QC-2.5-8-3D 2.5 8 0.0115
QC-20-50-3D 20 50 0.0145
QC-22-50-3D 22 50 0.0145
QC-25-50-3D 25 50 0.0145
QC-3-10-3D 3 10 0.0115
QC-3-4-3D 3 4 0.0115
QC-3-6-3D 3 6 0.0115
QC-3-8-3D 3 8 0.0115
QC-3.5-12-3D 3.5 12 0.0115
QC-3.5-15-3D 3.5 15 0.0115
QC-3.5-6-3D 3.5 6 0.0115
QC-4-10-3D 4 10 0.0125
QC-4-12-3D 4 12 0.0125
QC-4-6-3D 4 6 0.0125
QC-4-8-3D 4 8 0.0125
QC-5-10-3D 5 10 0.0125
QC-5-15-3D 5 15 0.0125
QC-5-8-3D 5 8 0.0125
QC-6-10-3D 6 10 0.0125
QC-6-15-3D 6 15 0.0125
QC-6-20-3D 6 20 0.0125
QC-7-15-3D 7 15 0.0135
QC-7-20-3D 7 20 0.0135
QC-7-30-3D 7 30 0.0135
QC-8-15-3D 8 15 0.0135
QC-8-20-3D 8 20 0.0135
QC-8-30-3D 8 30 0.0135
QC-9-20-3D 9 20 0.0135
QC-9-30-3D 9 30 0.0135

Similar products

TM* Third party brands are trademarks of their respective owners.

  1. Axium™ Detachable Coil and Instant Detacher (I.D.) Instructions for Use: M045839CDOC2 Rev. D.
  2. Based on internal test report TR07-032. Axium System DVT (Bare Platinum-Tungsten). September 2016.
  3. TR-NV14378 Rev A (v1.0) Based on internal test report TR-NV14378. Axium™ Prime Coil Softness (k-factor). October 2017.

  1. Based on internal test report TR-NV12442. Bench test comparing average work number of Axium™ Prime Extra Soft coil versus Target™* Nano™* coil. 20 units of each coil were tested. September 2015.
  2. Based on internal test report, TR-NV12051 Axium Prime Finishing Coils Design Validation Report. March 2015.
  3. Based on internal test report TR-NV12197, Axium Prime 1.5mm 3D Finishing Coils Design Verification and Validation Adoption. Rev B.
  4. Based on internal test report TRNV-10304, Axium Prime Super Soft Design Validation Report. Rev A.
  5. Based on internal test report TR09-218, Axium Prime Reliability Test Report. Rev A.
  6. Based on internal test report TR-NV13164, Design Verification and Validation Adoption Report Fitz Roy. Rev C.
  7. Based on internal test report D00776522, Axium, Axium Prime, Concerto Competitor Detachment Reliability Marketing Report. Rev A.
  8. Based on internal test report TR10-126, NG Axium Pusher Unibody Feasibility Report. Rev A.
  9. Based on internal test report TR-NV12481, Axium Prime Coil Extra Soft Field Training Material. Rev A.
  10. Based on internal test report TR-NV13175, Fitz Roy Design Verification Test Report. Rev D.
  11. Based on internal test report FD3117, Implant Articulation Test, Axium/Axium Prime Vs. Competitors. Rev A.
  12. Based on internal test report FD3118, Implant Layup Test, Axium/Axium Prime Vs. Competitors. Rev A.
