Endotracheal tubes

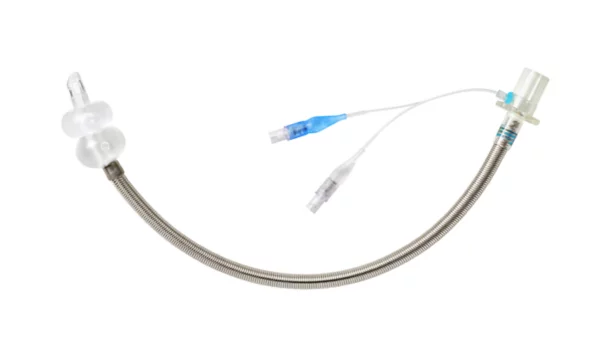

Shiley™ laser oral endotracheal tube

<p>The Shiley™ laser oral endotracheal tube has a stainless steel body that is airtight, flexible, and laser resistant.</p>

Features

  • Laser resistant, non-flammable, flexible stainless steel tube1,3
  • Accidental contact of the tube shaft with laser beam results in the reflection of a defocused beam1,3
  • Airtight steel spiral prevents air leaks occurring along the tube’s length2,3
  • 15 mm standard connector3
  • Dual cuffs of extra-large diameter and individual inflation lines3
  • Clearly marked pilot balloon valves3
  • Murphy eye3,4

Ordering information

Shiley™ laser oral endotracheal tube, dual-cuffed with Murphy eye

Item number ID (mm) OD (mm) Maximum OD (mm) Length (mm) Units per box
86397 4.5 7.0 8.5 341 5
86394 5.0 7.5 9.0 341 5
86395 5.5 7.9 9.4 341 5
86398 6.0 8.5 10.1 341 5

Shiley™ laser oral endotracheal tube, cuffless, Magill

Item number ID (mm) OD (mm) Maximum OD (mm) Length (mm) Units per box
86400 3.0 5.2 5.9 238 5
86401 3.5 5.7 6.5 238 5
86402 4.0 6.1 6.9 238 5

Similar products

  1. Based on internal test RE00307637, verification by analysis technical report, laser resistance, Shiley™ laser oral tracheal products. 2005.
  2. Based on internal test RE00437430, design verification report, cuffed laser oral tracheal tube (laser flex), Internal Leak. 2014.

  1. Based on internal test RE00268005, design verification plan & summary report, Shiley™ laser oral tracheal (laser flex) products, (MDR remediation). 2016.
  2. Based on internal test RE00437151, design verification report, cuffed laser oral tracheal tube (laser flex), murphy eye location. 2014.
