EP RECORDING SYSTEM

EP-TRACER solution

The EP-TRACER is the electrophysiological measurement system with a fully-integrated stimulator.

Indications, Safety, and WarningsThe material on this website should not be considered the exclusive source of information, it does not replace or supersede information contained in the device manual(s).Please note that the intended use of a product may vary depending on geographical approvals.See the device manual(s) for detailed information regarding the intended use, the implant procedure, indications, contraindications, warnings, precautions, and potential adverse events.For a MRI compatible device(s), consult the MRI information in the device manual(s) before performing a MRI.If a device is eligible for eIFU usage, instructions for use can be found at Medtronic’s website manuals.medtronic.com.Manuals can be viewed using a current version of any major internet browser. For best results, use Adobe Acrobat® Reader with the browser.Medtronic products placed on European markets comply with EU and UK legislation (if applicable) on medical devices. For any further information, contact your local Medtronic representative.Medtronic medical devices marketed in Spain are in compliance with the Spanish legislation in force.

Specifications

EP-TRACER is the electrophysiological measurement system with a fully-integrated stimulator. The EP-TRACER 2* with fully-integrated stimulator can be used for both clinical and experimental EP studies. A single device and a standard protocol allows investigations to be carried out in any laboratory.

EP-TRACER comes in 3 different configurations: Portable, ProCart (These configurations are mobile and compact - easy to move from one lab to another and can significantly increase efficiency of hospitals) and Stationary (fixed set-up, with remote desktop kit and zero footprint in the lab). The system can also be connected to a high resolution monitor and a laser printer to facilitate operation in a hospital environment.

Features

Amplifier

EP-TRACER 2 amplifiers offer the connection of either 20, 52 or 84 intracardiac channels. All amplifier models allow connection of 12 surface ECG channels and 6 auxiliary channels which, for example, can be used for the measurement of invasive blood pressure.

Integrated Stimulator

The EP-TRACER 2 is equipped with a built-in 2-channel stimulator. The software allows stimulation on any intracardiac channel with the click of the mouse, without further external wiring or equipment. Stimulation protocols are easily customized and accessed, thus further streamlining the procedural workflow.

Software

The EP-TRACER 2 software provides an intuitive interface that supports your requirements at every stage of the procedure. Special display modes, such as triggered mode, pressure mode and multiple user-configurable split-screen modes provide the perfect framework to display data from multiple sources. For example, surface and intracardiac ECG signals, invasive blood pressure, as well ablation data (PFA - RF - and cryo-ablators supported) can all be displayed within your customized layout. One-touch commands to start/stop stimulation, decrement interval time, load a saved stimulation protocol, save events, add comments etc., allows for the seamless operation of the EP-TRACER within your preferred workflow. All events are time-stamped and added to the user-customizable procedure log to facilitate reporting and later review from anywhere in the hospital network using our specialized review software.

The EP-TRACER Solution:

Recorder and Stimulator: 2-in-1 system
- Recorder with built-in stimulator controlled through the same software
- All components fully-integrated
- Critical information visualised on one screen
- Less wiring/cable connection problems due to integrated design.
Excellent Signal Quality
- Built-in stimulator helps reduce influence of external systems and provides optimal signal quality.
- Compatible with Cryoablation, PFA and RF systems and 3D mapping solutions
Flexible Configurations
- Configurations include Mobile Cart, Portable System, Fixed Installation
- Small footprint
- Can be rapidly moved between laboratories and hospitals
- Can turn any cath lab into fully functional EP lab
Optimised for Cryoablation
- Temperature curve display
- Time to isolation
- Visualisation of a CMAP trace to display phrenic nerve activity

Resources

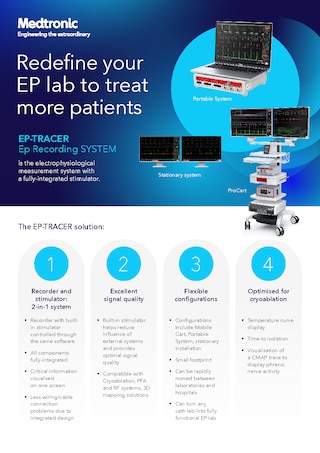

EP-TRACER spec sheet (open in new window)

Download EP-TRACER spec sheet

PRODUCT PDF 901 KB

Interview video

Interview with PD Dr. Chun and PD Dr. Schmidt about EP-TRACER recording system during clinical practice.

video case study 1

Medtronic Cryoballoon AF ablation using the EP-TRACER MOBILE CART recording system.

video case study 2

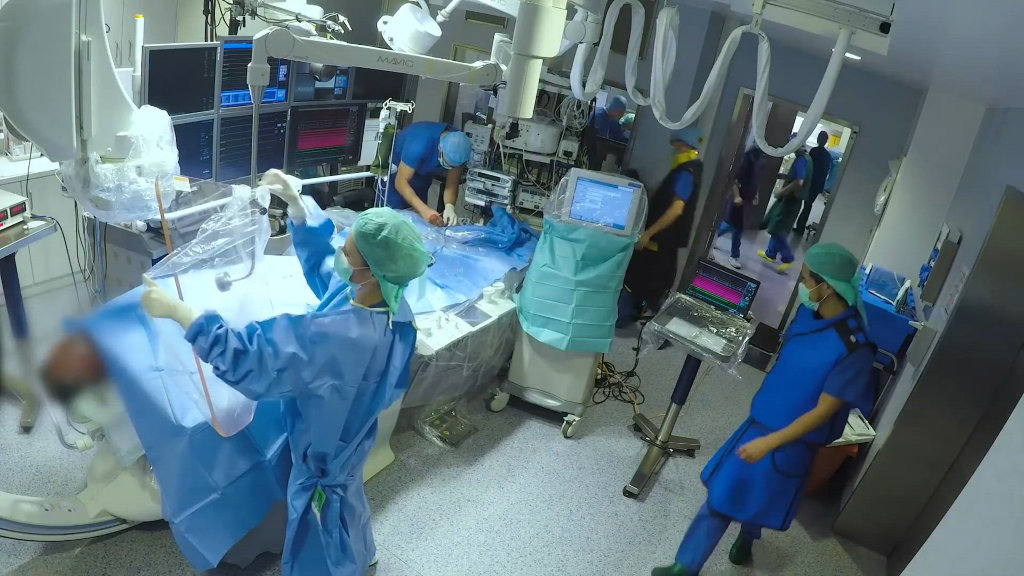

Medtronic Cryoballoon AF ablation using the EP-TRACER PORTABLE recording system.
