Peripheral and biliary stents

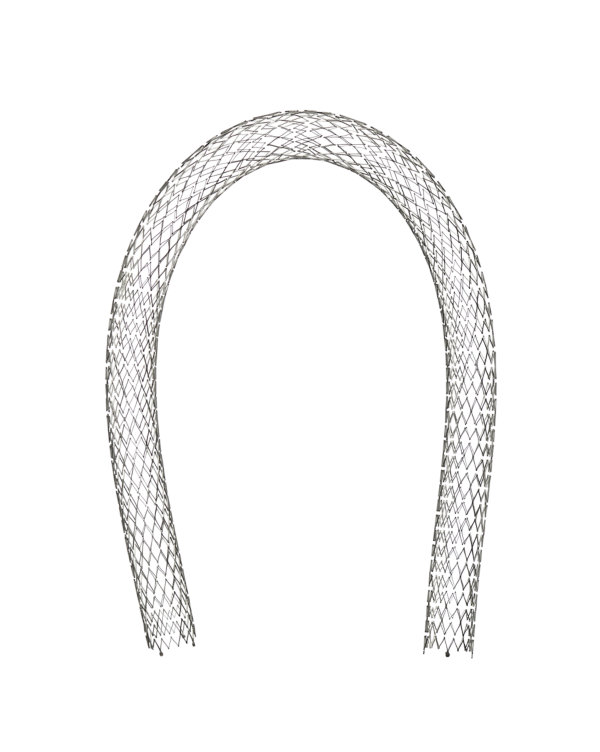

Protégé™ EverFlex™ self-expanding biliary stent system

<p>The Protégé™ EverFlex™ self-expanding biliary stent system offers stents from 20 to&nbsp;200 mm with tantalum radiopaque markers for enhanced visibility.</p>

Ordering information
Contact a representative

Indications

Peripheral

The stent is indicated for use in the following types of occlusions or lesions:

  • Occlusions or lesions at high risk for abrupt closure or threatened closure following percutaneous transluminal angioplasty (PTA)
  • Lesions that appear to be at high risk for restenosis following PTA in the common iliac, external iliac, superficial femoral, and proximal popliteal arteries

Stenting is intended to improve and maintain the artery luminal diameter.

Product details

Durability

Product details of self-expanding peripheral stent.

  1. Spiral cell connection pattern enhances flexibility
  2. Three-wave peak design produces expansion force that resists compression and provides excellent wall apposition
  3. Peak-to-peak connection nodes help to disperse force uniformly among four struts
  4. Tantalum markers for enhanced visibility and easier, more precise positioning
  5. Flexible design for improved fracture resistance and restored vessel patency

Precision placement

Self-expanding peripheral stent's positioning features

  1. Tantalum GPS markers enhance visibility for easier, more precise positioning.
  2. Proprietary deployment system secures the stent to prevent premature deployment or “jumping.”

Convenience

  • The system has the broadest offering of stent lengths: 20 mm–200 mm.
  • The entire product line is 6F sheath compatible.

Manuals and Technical Guides

Instructions for Use
Find this technical manual in the product labeling supplied with each device.

Ordering information



Catheter Length Stent Size Compatibility
Reference Number
80 cm		 Reference Number
120 cm		 Diameter
(mm)		 Length
(mm)		 Recommended
Introducer
Sheath
(F)		 Guidewire
(in)		 Recommended
Lumen Size
mm)
PRP35-05-020-080 PRP35-05-020-120 5 20 6 0.035 3.5-4.5
PRP35-05-030-080 PRP35-05-030-120 5 30 6 0.035 3.5-4.5
PRP35-05-040-080 PRP35-05-040-120 5 40 6 0.035 3.5-4.5
PRP35-05-060-080 PRP35-05-060-120 5 60 6 0.035 3.5-4.5
PRP35-05-080-080 PRP35-05-080-120 5 80 6 0.035 3.5-4.5
PRP35-05-100-080 PRP35-05-100-120 5 100 6 0.035 3.5-4.5
PRP35-05-120-080 PRP35-05-120-120 5 120 6 0.035 3.5-4.5
PRP35-05-150-080 PRP35-05-150-120 5 150 6 0.035 4.5-5.5
PRP35-06-020-080 PRP35-06-020-120 6 20 6 0.035 4.5-5.5
PRP35-06-030-080 PRP35-06-030-120 6 30 6 0.035 4.5-5.5
PRP35-06-040-080 PRP35-06-040-120 6 40 6 0.035 4.5-5.5
PRP35-06-060-080 PRP35-06-060-120 6 60 6 0.035 4.5-5.5
PRP35-06-080-080 PRP35-06-080-120 6 80 6 0.035 4.5-5.5
PRP35-06-100-080 PRP35-06-100-120 6 100 6 0.035 4.5-5.5
PRP35-06-120-080 PRP35-06-120-120 6 120 6 0.035 4.5-5.5
PRP35-06-150-080 PRP35-06-150-120 6 150 6 0.035 4.5-5.5
N/A PRP35DR-06-200-120 6 200 6 0.035 4.5-5.5
PRP35-07-020-080 PRP35-07-020-120 7 20 6 0.035 5.5-6.5
PRP35-07-030-080 PRP35-07-030-120 7 30 6 0.035 5.5-6.5
PRP35-07-040-080 PRP35-07-040-120 7 40 6 0.035 5.5-6.5
PRP35-07-060-080 PRP35-07-060-120 7 60 6 0.035 5.5-6.5
PRP35-07-080-080 PRP35-07-080-120 7 80 6 0.035 5.5-6.5
PRP35-07-100-080 PRP35-07-100-120 7 100 6 0.035 5.5-6.5
PRP35-07-120-080 PRP35-07-120-120 7 120 6 0.035 5.5-6.5
PRP35-07-150-080 PRP35-07-150-120 7 150 6 0.035 5.5-6.5
N/A PRP35DR-07-200-120 7 200 6 0.035 5.5-6.5
PRP35-08-020-080 PRP35-08-020-120 8 20 6 0.035 6.5-7.5
PRP35-08-030-080 PRP35-08-030-120 8 30 6 0.035 6.5-7.5
PRP35-08-040-080 PRP35-08-040-120 8 40 6 0.035 6.5-7.5
PRP35-08-060-080 PRP35-08-060-120 8 60 6 0.035 6.5-7.5
PRP35-08-080-080 PRP35-08-080-120 8 80 6 0.035 6.5-7.5
PRP35-08-100-080 PRP35-08-100-120 8 100 6 0.035 6.5-7.5
PRP35-08-120-080 PRP35-08-120-120 8 120 6 0.035 6.5-7.5
PRP35-08-150-080 PRP35-08-150-120 8 150 6 0.035 6.5-7.5
N/A PRPDR35-08-200-120 8 200 6 0.035 6.5-7.5
