Endotracheal tubes

Shiley™ oral-nasal reinforced endotracheal tube

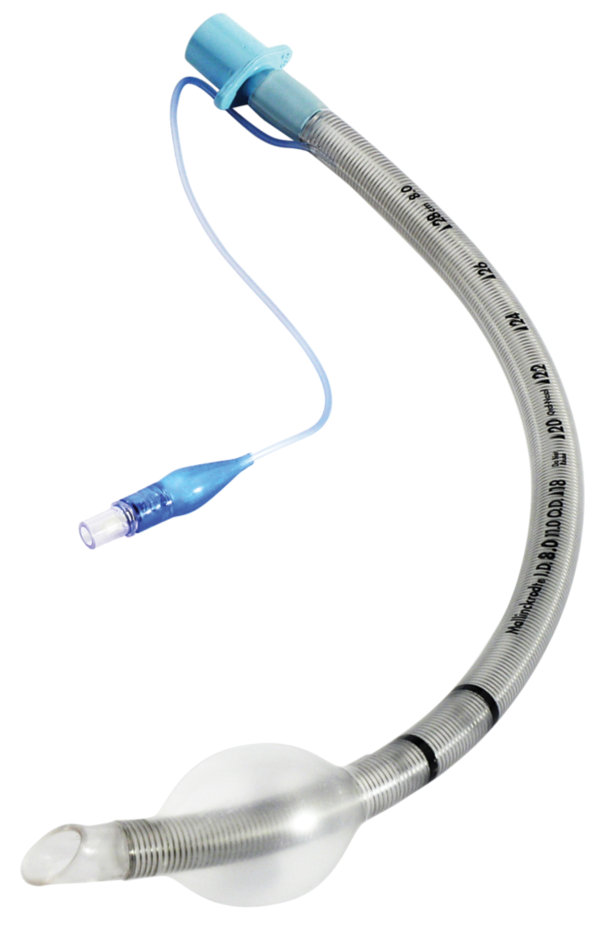

<p>The Shiley™ reinforced oral-nasal endotracheal tube features a soft, flexible PVC tube with spiral-wound reinforcing wire.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsThe material on this website should not be considered the exclusive source of information, it does not replace or supersede information contained in the device manual(s).Please note that the intended use of a product may vary depending on geographical approvals.See the device manual(s) for detailed information regarding the intended use, the implant procedure, indications, contraindications, warnings, precautions, and potential adverse events.For a MRI compatible device(s), consult the MRI information in the device manual(s) before performing a MRI.If a device is eligible for eIFU usage, instructions for use can be found at the Medtronic website manuals.medtronic.com.Manuals can be viewed using a current version of any major internet browser. For best results, use Adobe Acrobat® Reader with the browser.Medtronic products placed on European markets comply with EU and UK legislation (if applicable) on medical devices. For any further information, contact your local Medtronic representative.Medtronic medical devices marketed in Spain are in compliance with the Spanish legislation in force.

Features

Latex-free^2,3,4
Soft, flexible PVC tube with spiral-wound reinforcing wire is designed to help reduce risk of kinking^2,3,4
Reinforcing wire is sealed tightly against bonded connector^2,3,4
Reference marks at 2 cm and 4 cm above the cuff aid in proper placement of tracheal tube tip^2,3,4
Standard features (cuffed):^2,3,4
- Full Magill curve
- Murphy eye
- Packaged sterile

See OR use of the McGrath™ MAC video laryngoscope and associated Shiley™ tubes and INVOS™ and BIS™ accessories.

Ordering information

REF

Item number	ID (mm)	OD (mm)	Length (mm)	Cuff Ø (mm)	Units per box
118-30	3.0	5.0	195	8	10
118-35	3.5	5.2	212	9	10
118-40	4.0	6.2	236	9	10
118-45	4.5	6.7	250	11	10
118-50	5.0	6.9	308	17	10
118-55	5.5	7.5	320	19	10
118-60	6.0	8.2	320	21	10
118-65	6.5	8.8	330	22	10
118-70	7.0	9.6	340	24	10
118-75	7.5	10.2	350	26	10
118-80	8.0	10.8	360	28	10
118-85	85	11.5	365	29	10
118-90	9.0	12.1	370	31	10
118-95	9.5	12.8	370	32	10

REF with Murphy eye

Item number	ID (mm)	OD (mm)	Length (mm)	Cuff Ø (mm)	Units per box
118-60M	6.0	8.2	320	21	10
118-65M	6.5	8.8	330	22	10
118-70M	7.0	9.6	340	24	10
118-75M	7.5	10.2	350	26	10
118-80M	8.0	10.8	360	28	10
118-85M	85	11.5	365	29	10
118-90M	9.0	12.1	370	31	10
118-95M	9.5	12.8	370	32	10

REF with TaperGuard™ Cuff

Item number	ID (mm)	OD (mm)	Length (mm)	Cuff Ø (mm)	Units per box
118-60MTG	6.0	8.2	320	21	10
118-65MTG	6.5	8.8	330	22	10
118-70MTG	7.0	9.6	340	24	10
118-75MTG	7.5	10.2	350	26	10
118-80MTG	8.0	10.8	360	28	10
118-85MTG	85	11.5	365	29	10
118-90MTG	9.0	12.1	370	31	10
118-95MTG	9.5	12.8	370	32	10
