Tracheostomy tubes

Shiley™ neonatal-pediatric tracheostomy tube

<p>The Shiley™ neonatal-pediatric tracheostomy tube is specifically designed for the distinct anatomy of neonate and pediatric airways.</p>

Ordering information
Contact a representative

Features

These clinician inspired products are manufactured with a non-DEHP plasticizer. This new material has been incorporated into the soft, transparent flange that allows for enhanced visualization of the underlying skin and stoma site.

  • Non-DEHP material: Shiley™ tracheostomy solutions meet the latest safety standards, offering tubes that are manufactured with a non-DEHP plasticizer material.1
  • Soft, clear neck flange: The Shiley™ tube’s transparent flange allows for enhanced visualization of the underlying skin and stoma site.2
  • Varying flange angles: Shiley™ tracheostomy solutions are manufactured with varying flange angles to help provide a better fit for infants and children as they grow.2
  • Comfort recess: Shiley™ tracheostomy tubes include a comfort recess designed to help reduce pressure on the patient’s skin.3
  • Tape tie recess: The flange on a Shiley™ tracheostomy tube includes a recess to make insertion of a tape tie or tracheostomy tube holder simple and to reduce contact with the patient’s skin.2
  • Child-safe pilot balloon: Shiley™ tracheostomy tubes include plastic housing around the tip of the inflation lumen that prevents the ability of placing the inflation lumen into the 15 mm connector of the tracheostomy tube, which could obstruct airflow.
A toddler is seen at home with a Shiley™ neonatal-pediatric tracheostomy tube in place.

Ordering information

Shiley™ neonatal tracheostomy tubes, cuffless

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
2.5NEF 2.5 4.2 28 8.0 —
3.0NEF 3.0 4.8 30 9.1 —
3.5NEF 3.5 5.4 32 10.1 —
4.0NEF 4.0 6.0 34 11.5 —
4.5NEF 4.5 6.7 36 12.3 —

Shiley™ neonatal tracheostomy tubes, with TaperGuard™ cuff

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
2.5NCF 2.5 4.2 28 8.0 —
3.0NCF 3.0 4.8 30 9.1 —
3.5NCF 3.5 5.4 32 10.1 —
4.0NCF 4.0 6.0 34 11.5 —
4.5NCF 4.5 6.7 36 12.3 —

Shiley™ pediatric tracheostomy tubes, cuffless

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
2.5PEF 2.5 4.2 38 8.0 1
3.0PEF 3.0 4.8 39 9.1 1
3.5PEF 3.5 5.4 40 10.1 1
4.0PEF 4.0 6.0 41 11.5 1
4.5PEF 4.5 6.7 42 12.3 1
5.0PEF 5.0 7.3 44 14.2 1
5.5PEF 5.5 7.9 46 15.6 1

Shiley™ pediatric tracheostomy tubes, with TaperGuard™ cuff

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
2.5PCF 2.5 4.2 38 8.0 1
3.0PCF 3.0 4.8 39 9.1 1
3.5PCF 3.5 5.4 40 10.1 1
4.0PCF 4.0 6.0 41 11.5 1
4.5PCF 4.5 6.7 42 12.3 1
5.0PCF 5.0 7.3 44 14.2 1
5.5PCF 5.5 7.9 46 15.6 1

Shiley™ extra-long pediatric tracheostomy tubes, cuffless

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
5.0PELF 5.0 7.3 50 14.2 1
5.5PELF 5.5 7.9 52 15.6 1
6.0PELF 6.0 8.5 54 17.2 1
6.5PELF 6.5 9.0 56 19.1 1

Shiley™ extra-long pediatric tracheostomy tubes, with TaperGuard™ cuff

Item number ID (mm) OD (mm) Length (mm) Cuff resting diameter Units per box
5.0PLCF 5.0 7.3 50 14.2 1
5.5PLCF 5.5 7.9 52 15.6 1
6.0PLCF 6.0 8.5 54 17.2 1
6.5PLCF 6.5 9.0 56 19.1 1

Resources

In-service video

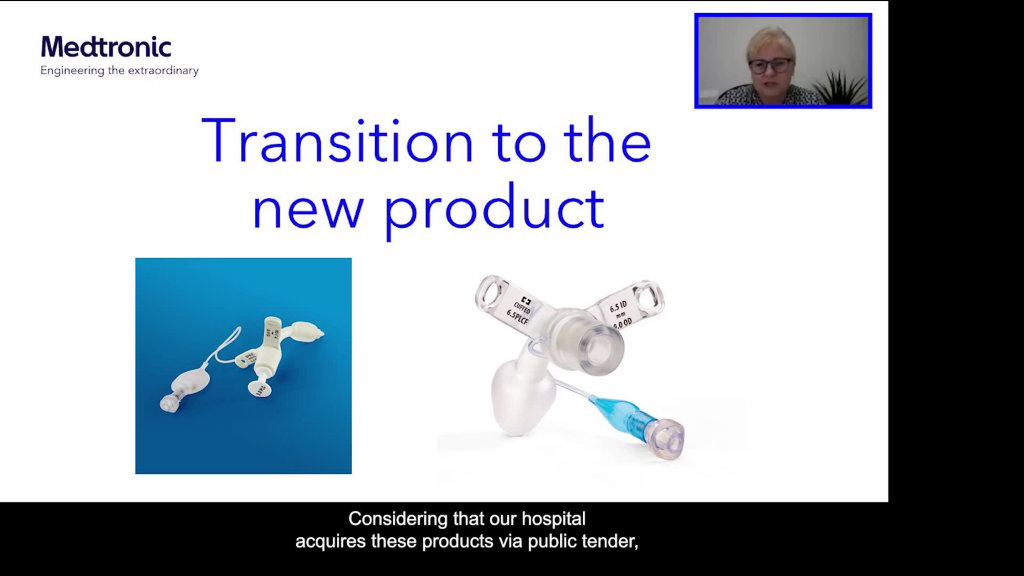

Shiley™ Tracheostomy Tubes Conversion (Barcelona, Spain) Video (22:10)

Similar products

  1. Based on internal test report RE00175825, specification, technical file, part A, Shiley™ neonatal and pediatric tracheostomy tubes (Ella).
  2. Based on internal test report RE00371765, specification, verification by analysis for Shiley™ neonatal and pediatric cuffed and cuffless non DEHP tracheostomy products.
  3. Based on internal test report RE00371766, verification by analysis report for Shiley™ neonatal and pediatric cuffed and cuffless non DEHP tracheostomy products.
