Transcatheter systems

Evolut™ FX+ system

<p>The Evolut™ FX+ transcatheter aortic valve system is designed with specific features intended to enable lifetime management solutions such as coronary access.&nbsp;</p>

Contact a representative

Features

Built for durability

Designed to maintain the same radial force at the inflow and structural strength at the outflow as the Evolut™ FX valve.1

Designed for access

Designed with three windows that are 4 times larger to enable lifetime management solutions such as coronary access.2



Performance as compared to Evolut™ PRO+ and FX system in bench testing. Bench testing may not be indicative of clinical performance.

Design elements

Hear from Ryan Stublaski, Medtronic Engineering Program Manager, about the customer feedback that influenced the design changes to the Evolut™ FX+ valve.

Manuals and technical guides

Access instructions for use and other technical manuals in the Medtronic manual library. Search by the product name (e.g., Evolut™) or model number.

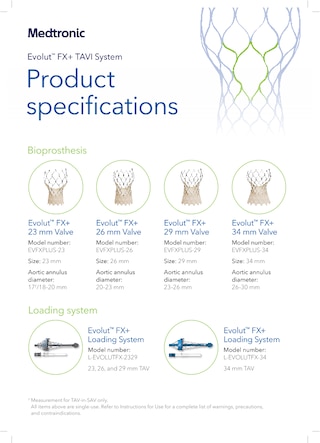

Ordering information

Bioprosthesis — Evolut™ FX+ valve

Item number Valve size (mm) Aortic annulus diameter (mm)
EVFXPLUS-23
 23 18–20
EVFXPLUS-26
 26 20–23
EVFXPLUS-29
 29 23–26
EVFXPLUS-34
 34 26–30


Loading system — Evolut™ FX loading system

Item number Description
L-EVOLUTFX-2329 Loading system for use with 23, 26, and 29 mm TAV
L-EVOLUTFX-34 Loading system for use with 34 mm TAV


Delivery catheter system — Evolut™ FX delivery catheter system with InLine™ sheath

Item number Description Delivery system size Delivery system working length (cm)
D-EVOLUTFX-2329 Delivery system for use with 23, 26, 29 mm TAV 14 Fr equivalent (6 mm capsule outer diameter) 108
D-EVOLUTFX-34 Delivery system for use with 34 mm TAV 18 Fr equivalent (7.33 mm capsule outer diameter) 108



Resources

Related links

Get support.

Reach out to LifeLine CardioVascular Tech Support with questions.

Phone: 877-526-7890

Email us

Clinical evidence

The Medtronic CoreValve™/Evolut™ platform is supported by a robust body of clinical evidence. Explore the CoreValve™/Evolut™ clinical success.

See the data

Education and resources

Find more detailed TAVI information, educational resources, and tools.

Visit Medtronic Academy (open in new window)

Stay connected.

Follow us on LinkedIn for the latest in TAVI updates.

Follow us (open in new window)

Similar products

  1. Based on Evolut™ FX+ Test Reports: D01073856, D01095344, D01084996. Medtronic data on file. Performance as compared to Evolut™ PRO+ and FX system in bench testing. Bench testing may not be indicative of clinical performance.  
