Transcatheter systems

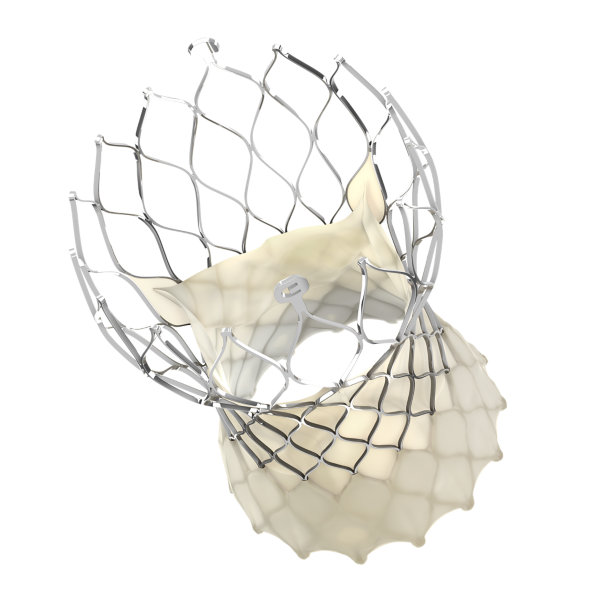

Evolut™ PRO+ system

<p>The Evolut™ PRO+ TAVI system features the lowest delivery profile for 23–29 mm valves and advanced sealing with an external tissue wrap on all valve sizes.</p>

Features

Explore the Evolut™ PRO+ TAVI system.

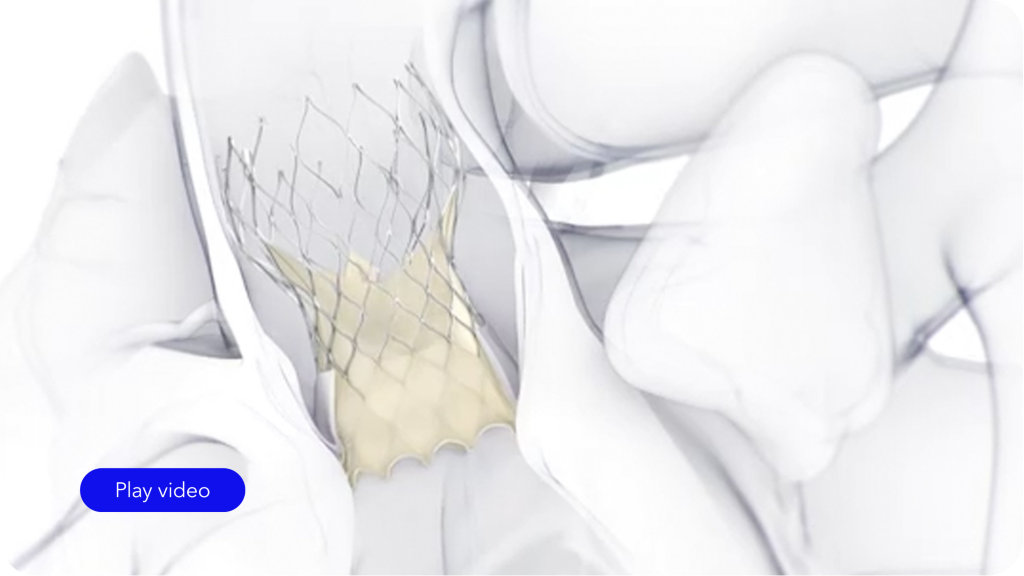

Learn how the Evolut™ platform is designed to go beyond procedural outcomes to benefit your patients.


Exceptional design, exceptional outcomes

Lowest delivery profile

Allows access down to 5.0 mm vessels with 23–29 mm valves.

This is an electric blue icon showing a circle with a dotted line through it and two arrows pointing inward to represent a low-profile delivery system.

Advanced sealing

Expect more surface contact between the valve and the native aortic annulus, with an external tissue wrap for all valve sizes.

This is an electric blue icon of an Evolut™ transcatheter aortic valve.

Treat more TAVI patients.

The Evolut™ PRO+ TAVI system is indicated to treat annulus ranges up to 30 mm in diameter and has the ability to treat the broadest annulus range of any commercially available TAVI system.

This is an image of the Evolut™ PRO+ transcatheter aortic valve platform depicting how Evolut™ is indicated to treat annulus sizes up to 30 mm.

TAVI risks may include, but are not limited to, death, stroke, damage to the arteries, bleeding, and need for permanent pacemaker.


Manuals and technical guides

Access instructions for use and other technical manuals in the Medtronic manual library. Search by the product name (e.g., Evolut™) or model number. You may also call 800-961-9055 for a copy of the manual.


Ordering information

Bioprosthesis — Evolut™ PRO+ valve

Item number Valve size (mm) Aortic annulus diameter (mm)
EVPROPLUS-23 23 17/18–20
EVPROPLUS-26 26 20–23
EVPROPLUS-29 29 23–26
EVPROPLUS-34 34 26–30



Loading system — Evolut™ PRO+ loading system

Item number Description
L-EVPROP23-29 Loading system for use with 23, 26, and 29 mm TAV
L-EVPROP34 Loading system for use with 34 mm TAV



Delivery catheter system — Evolut™ PRO+ delivery catheter system with InLine™ sheath

Item number Description Delivery system size Delivery system working length (cm)
D-EVPROP23-29 Delivery system for use with 23, 26, 29 mm TAV 14 Fr equivalent (6 mm capsule outer diameter) 107
D-EVPROP34 Delivery system for use with 34 mm TAV 18 Fr equivalent (7.33 mm capsule outer diameter) 107



Related links

Get support.

Reach out to LifeLine CardioVascular Tech Support with questions.

Phone: 877-526-7890

Clinical evidence

The Medtronic CoreValve™/Evolut™ platform is supported by a robust body of clinical evidence. Explore the CoreValve™/Evolut™ clinical success.

Education and resources

Find more detailed TAVI information, educational resources, and tools.

Stay connected.

Follow us on LinkedIn for the latest in TAVI updates.

† Broadest annulus range based on CT-derived diameters.

‡ Measurement is for TAV-in-SAV only.
