| Item number | Description | Size | Units per box |
|---|---|---|---|
| 302-000-000 | Handle | — | 1 |
| 350-082-000 | Blade | 1 | 10 |
| 350-072-000 | Blade | 1 | 50 |
| 350-084-000 | Blade | 2 | 10 |
| 350-017-000 | Blade | 2 | 50 |
| 350-086-000 | Blade | 3 | 10 |
| 350-005-000 | Blade | 3 | 50 |
| X3-003-000 | Blade | 3 | 10 |
| 350-088-000 | Blade | 4 | 10 |
| 350-013-000 | Blade | 4 | 50 |
| 340-000-000 | 3.6V Disposable battery | — | 1 |
| 341-100-000 | Rechargeable battery | — | 1 |
| 302-100-000 | Relay | — | 1 |
| 302-200-000 | Connected Screen | — | 1 |
| 300-000-100 | Carry case | — | 1 |
Video laryngoscopes

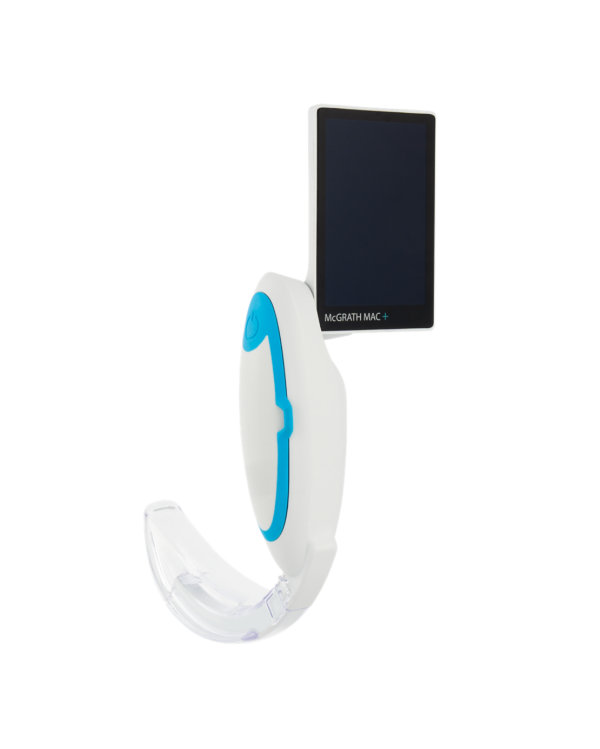

McGRATH™ MAC+ video laryngoscope
<p>The McGRATH™ MAC+ video laryngoscope is designed for airway intubation in the OR, ICU, ER, and EMS environments.</p>

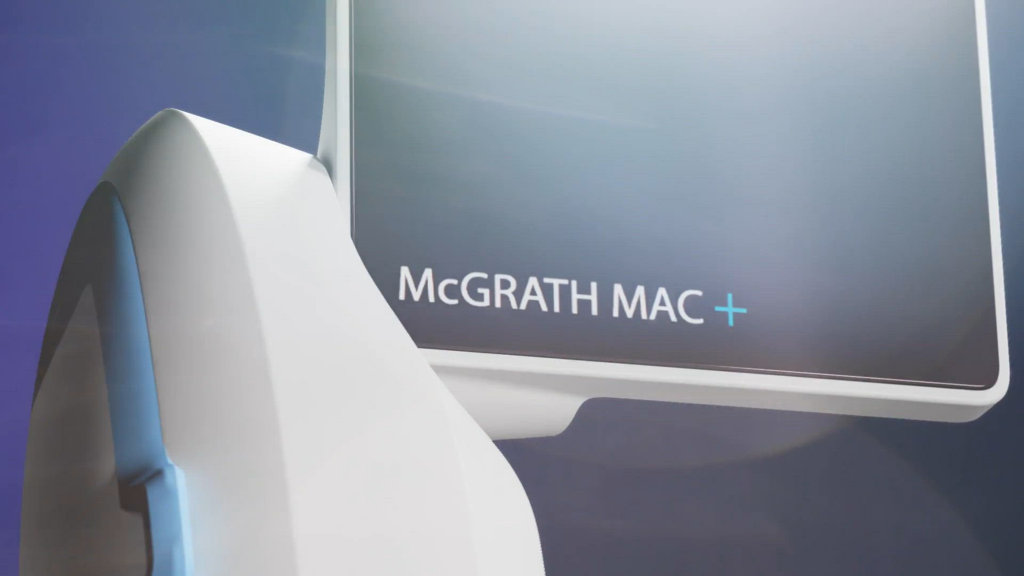

Introducing the McGRATH™ MAC+ video laryngoscope
Features
Same ergonomic design, better visualization
The McGRATH™ MAC+ video laryngoscope features a touchscreen with 45% more screen area and 4.5 times higher resolution than the the previous McGRATH™ MAC video laryngoscope, while keeping the same ergonomic design clinicians love.1
Work-flow friendly stream, record, save
Seamless streaming: Unlike some video laryngoscopes that require apps, Wi-Fi, cables, Bluetooth, or screen changes to stream, the McGRATH™ MAC+ video laryngoscope doesn’t. Powered by ProxiLinq™ wireless technology, which connects the McGRATH™ MAC+ video laryngoscope handle to the McGRATH™ relay internally, clinicians simply need to pair the relay with any external HDMI display once, and streaming starts automatically every time the device is turned on.
Retrospective recording: Often, the case you wish you had recorded was the one you just performed. The exclusive CaseCapture™ retrospective recording captures your entire procedure - no matter when you hit record - so you can review and learn from every case.
Auto file saving: Data is automatically stored and securely deleted within seven days via the McGRATH™ relay.
Enhance training and collaboration
Ideal for teaching and training, enabling residents and fellows to take on challenging cases while supervisors guide from second screen viewing.5, 6 Streaming enables real-time guidance during intubation without compromising situational awareness.5, 6 Post-procedure recording review creates a complete learning loop for continuous improvement.5
Always reliable. Always ready power source.
Unlike some video laryngoscopes with batteries built into the handles or screens, the McGRATH™ rechargeable battery is removable. The charging station can charge up to five batteries simultaneously — so there’s no downtime waiting for the device to charge.
Battery benefits
- 10,000 minutes of useful life, 60 minutes of operating time on the McGRATH™ MAC+ video laryngoscope8, 9
- Minute-by-minute battery time countdown on the screen, displaying remaining battery time8
- Color-coded LED indicator provides a visual indication of how much power remains to easily identify ready-to-use batteries8
- A rigid tab enables quick, single-handed, easy removal10
- The McGRATH™ rechargeable batteries help reduce waste generation by 97.8% and are expected to provide hospitals with long-term cost savings‡, 11
‡When compared with the McGRATH™ disposable battery. Based on a standardized operation runtime of 10,000 minutes, disposing the McGRATH™ rechargeable battery generate 24.72 grams of waste, while disposing the McGRATH™ disposable batteries generate 1098.5 grams of waste.
Make sure your first intubation attempt is your best
Routine use of the McGRATH™ MAC+ video laryngoscope improves first-pass success rate.§, 2, 3
§Based on evidence comparing the McGRATH™ MAC video laryngoscope with direct laryngoscopes and other video laryngoscopes. The McGRATH™ MAC+ video laryngoscope shares the same ergonomic design as its predecessor.
First-pass success (FPS) rate in McGRATH™ MAC video laryngoscope vs. Macintosh direct laryngoscope
McGRATH™ MAC video laryngoscope vs. other video laryngoscopes (N=120)
Customer experience
McGRATH™ MAC+ video laryngoscope at Lausanne University Hospital, Switzerland
Clinical education
In-service training videos
Overview guide

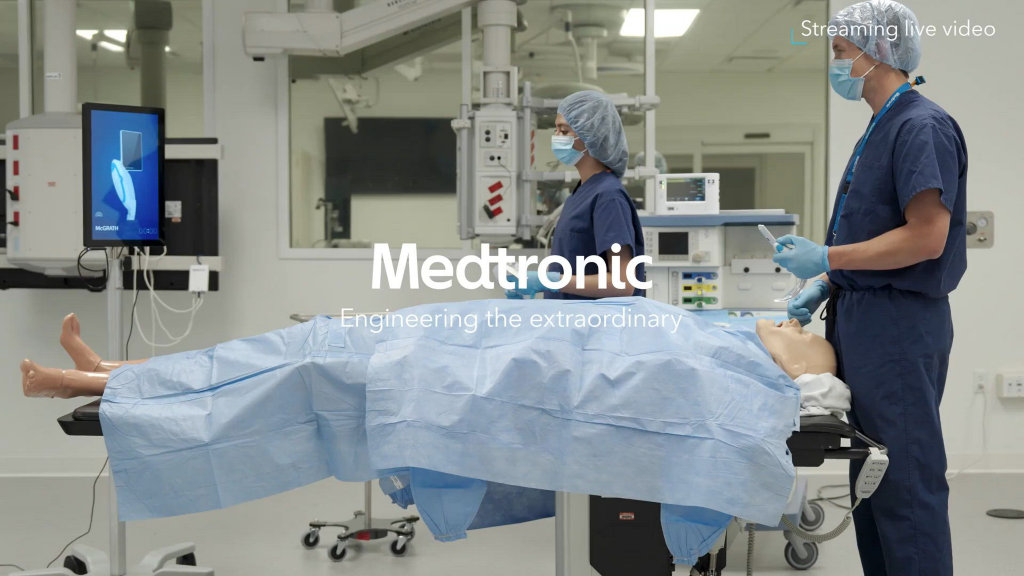

Streaming
Video recording and file saving

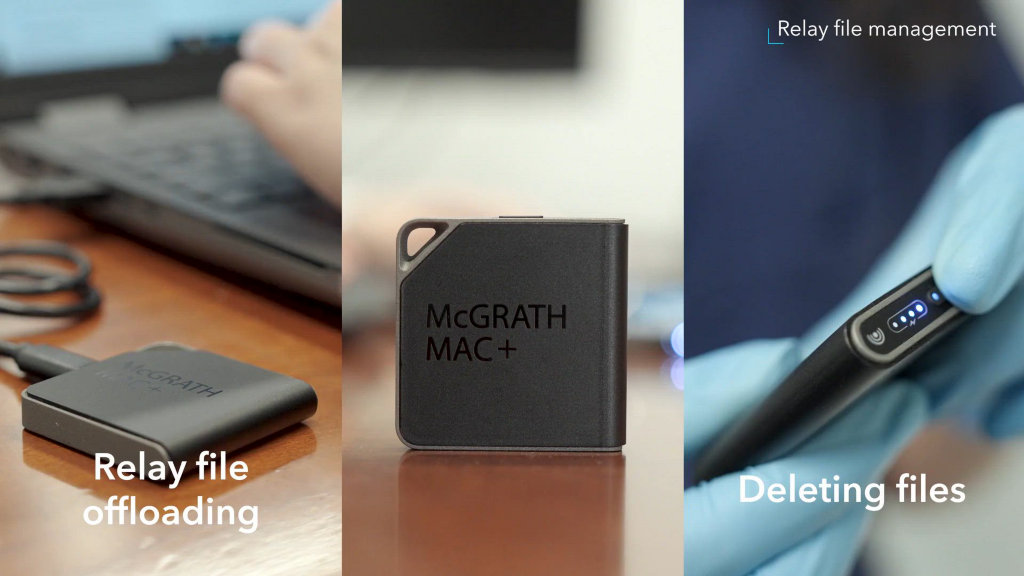

Relay file management

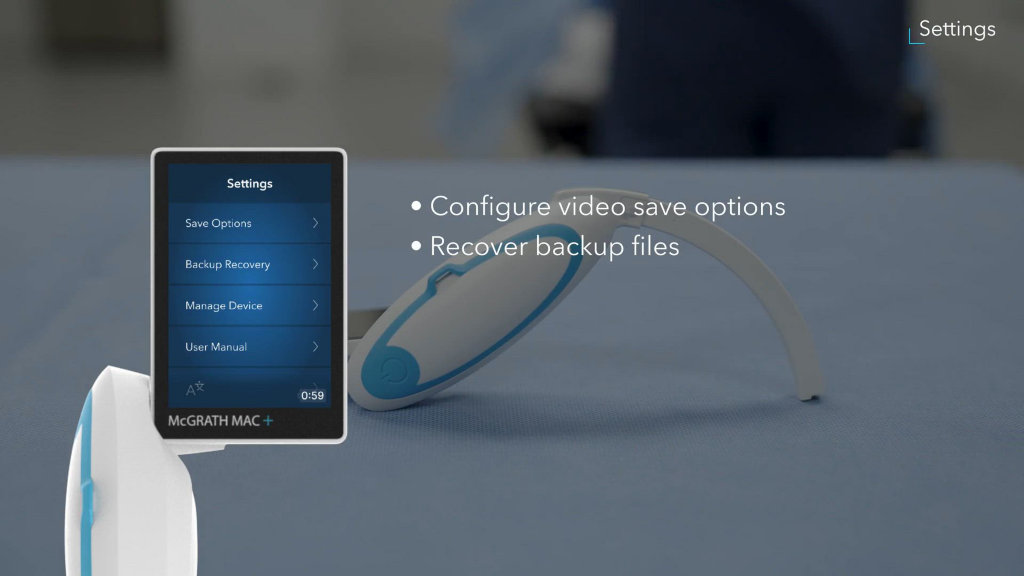

Settings
Cleaning

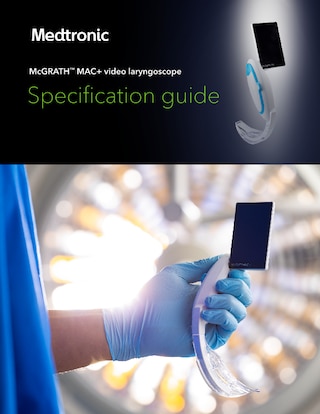

Specifications
McGRATH™ MAC+ video laryngoscope vs. McGRATH™ MAC video laryngoscope
| Feature | McGRATH™ MAC+ video laryngoscope9 | McGRATH™ MAC video laryngoscope12 |
|---|---|---|
| Weight | 0.172 kg | 0.180 kg |
| Screen resolution | 720x480 (4.5X higher resolution) | 320x240 |
| Screen size | 3 inch (45% bigger screen) | 2.4 inch |
| IP rating | IPX 8 | IPX 8 |
| Battery type | Rechargeable battery with auto-off feature | Disposable and rechargeable batteries with auto-off feature |
| Blade types | MAC blade size 1-4, hyper angulated blade size X3 | MAC blade size 1-4, hyper angulated blade size X3 |
| Streaming and file management | Yes | N/A |
| Video recording | Yes | N/A |
| Touch screen | Yes | N/A |
| Still image capture | Yes | N/A |
| File storage (video and still image) | Yes | N/A |
| Wireless connectivity | Yes | N/A |
Technical specifications
| McGRATH™ MAC+ video laryngoscope9 | ||
|---|---|---|
| Size | 190 mm x 68 mm x 110 mm | |
| Weight | 0.172 kg | |
| Internally powered | McGRATH™ rechargeable battery◊ typically 60 minutes of use on a full charge | |
| Protection | IP38 Pay attention to the effects of lint, dust, light (including sunlight), etc. | |
| Light source | LED | |
| Display | 3” LCD color display | |
| Camera | CMOS | |
| RFID | Transmitting frequency: 13.56MHz, Output power: -0.24dBμA/m | |
| Useful life | 4 years or 2000 decontamination cycles | |
◊Where the ambient temperature is 20°C, battery life may vary where the ambient temperature is higher or lower. Do not store batteries or devices with batteries at more than 40°C (104°F). Doing so will shorten the life of the battery.
Ordering information
Resources
Similar products
-
McGRATH™ MAC video laryngoscopeThe McGRATH™ MAC video laryngoscope is designed for airway intubation in the OR, ICU, ER, and EMS environments.
-
Shiley™ oral-nasal endotracheal tube with intermediate cuffThe DEHP-free Shiley™ endotracheal tubes with intermediate cuff can be used for pediatric through adult patients.
For trained personnel only. For specific indications and instructions for use, please refer to the product manual.
References
- Medtronic internal file. RE00569384
- Kriege M, Noppens R, Turkstra T, et al. A multicentre randomized controlled trial of the McGRATH™ MAC video laryngoscope versus conventional laryngoscopy. Anesthesia. 2023. doi:10.1111/anae.15985.
- Kleine-Brueggeney M, Greif R, Schoettker P, Savoldelli GL, Nabecker S, Theiler LG. Evaluation of six video laryngoscopes in 720 patients with a simulated difficult airway: a multicentre randomized controlled trial. Br J Anaesth. 2016 May;116(5):670-9. doi: 10.1093/bja/aew058. PMID: 27106971
- Alvis BD, Hester D, Watson D, Higgins M, St Jacques P. Randomized controlled trial comparing the McGRATH™ MAC video laryngoscope with the King Vision video laryngoscope in adult patients. Minerva Anestesiol. 2016;82(1):30–35.
- Kaplan MB, Ward DS, Berci G. A New Video Laryngoscope - An Aid in Intubation and Teaching. J Educ Perioper Med. 2003;5(1):E025. Published 2003 Jan 1.
- Medtronic internal file. RE00361833
- Kelly FE, Cook TM. Seeing is believing: getting the best out of video laryngoscopy. Br J Anaesth. 2016 Sep;117 Suppl 1:i9-i13. doi: 10.1093/bja/aew052. Epub 2016 Apr 19. PMID: 27095240.
- McGRATH™ rechargeable battery system instruction for use.
- McGRATH™ MAC+ video laryngoscope instruction for use.
- Medtronic internal file. RE00270408
- Medtronic internal file. RE00569390
- McGRATH™ MAC video laryngoscope instruction for use.
